Goodman E-Series 12,000 BTU 18 SEER2 Ductless Mini Split Inverter Air Conditioner Heat Pump System (230v) – One-stop shop for professional tools and equipment.

Description

Product Description

Goodman – FTXNG12AXVJU

Goodman has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. Goodman e-Series wall mounted systems are perfect for all your single zone heating and cooling needs. This system pairs a Goodman e-Series wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Goodman e-Series indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.

The Goodman E-Series Single Zone Mini Split Heat Pump System turns your house into an ideal home thanks to the Inverter technology that allows you to be comfortable while saving on your electricity bill. Inverter system ensures faster cooling with significant energy saving. Moreover, it helps to maintain consistent temperature in the room, makes you feel comfortable all the time especially when you are sleeping.

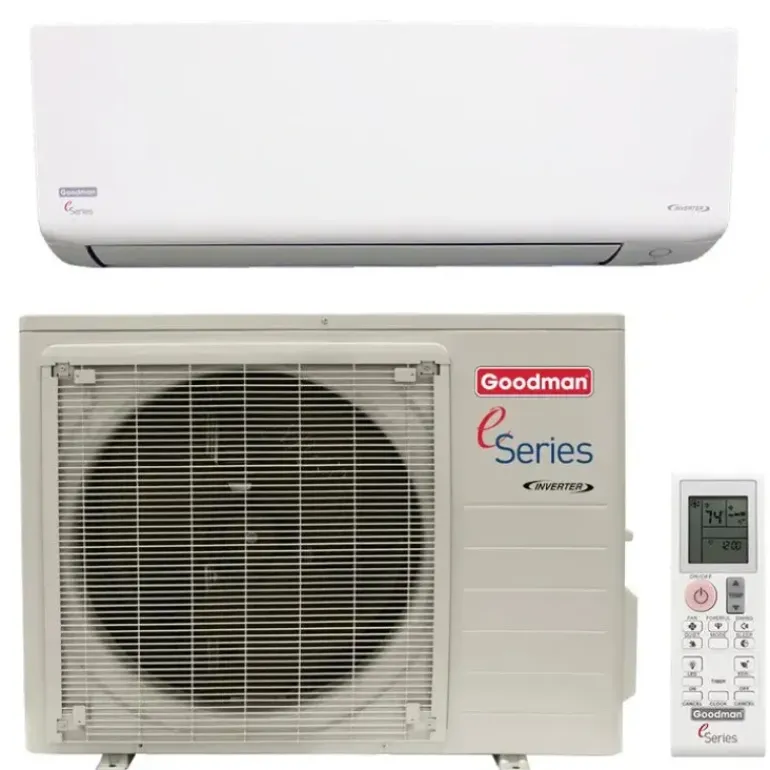

System Includes:

• Condenser (Outdoor Unit) – RXNG12AXVJU
• Wall-Mounted Air Handler (Indoor Unit) – FTXNG12AXVJU
• Wireless Remote

Features:

• Indoor Unit On/Off Switch. The unit can be conveniently started by hand if the wireless remote controller is misplaced or its batteries are not charged.
• Wireless Remote Controller with Luminous Button – The luminous button absorbs and saves light and then slowly releases it. This makes it easy to see in the dark
• Inverter Powerful Operation – This function boosts cooling or heating performance for a 20 minutes period. It is convenient when it is necessary to change the room temperature quickly.
• ECO+ Function – An intelligent feature that ensures optimum energy consumption while fulfilling basic human comfort needs. Once activated, set temperature will be adjusted automatically to an eco-friendly level while limiting the maximum power consumption.
• Sleep Mode – Unwind at the end of the day with Sleep Mode, which gradually adjust set temperature according to regular sleeping temperature patterns and auto adjust the LED display intensity for an effortlessly personalised sleeping environment.
• Wireless Remote Controller with Backlight – The backlit LCD allows easy operation in the dark, convenient for users to identify the functions activated.
• LED Display On/Off – The LED Display on unit can be conveniently turned off with the touch of a single button to ensure zero light disturbance
• Auto-Restart after Power Failure – The air conditioner memorises the settings for operation mode, fan speed and temperature setting and automatically returns to them when power is restored after a power failure.
• Self-Diagnosis with Digital Display – Malfunction codes can be retrieved and shown on the digital display panel of the wireless remote controller for fast and easy maintenance.
• Warranty – 10 years parts, 10 years compressor (if registered)

Additional Information

BrandGoodman

Model Name – IndoorFTXNG12AXVJU

Model Name – OutdoorRXNG12AXVJU

Class12

Rated Cooling Capacity (Min ~ Max) – Btu/hr11,000 (4,400 – 13,300)

Rated Cooling Capacity (Min ~ Max) – kW3.22 (1.30 – 3.90)

Rated Heating Capacity (Min ~ Max) – Btu/hr11,300 (4,400 – 16,400)

Rated Heating Capacity (Min ~ Max) – kW3.31 (1.30 – 4.81)

Rated Power Input – Cooling – W1294

Rated Power Input – Heating – W1004

Rated EER2 – Btu/hr/W8.5

Rated EER2 – W/W2.49

Rated COP – Btu/hr/W11.26

Rated COP – W/W3.30

SEER18.0

HSPF9.0

Power Supply – (V/pH/Hz)208/230/1/60

Maximum Piping Length – ft (m)65-5/8 (20)

Maximum Piping Elevation – ft (m)32-13/16 (10)

Chargeless – ft (m)32-13/16 (10)

Piping Connections Liquid – inch (mm)1/4 (6.4)

Piping Connections – Gas – inch (mm)3/8 (9.5)

Operating range – Cooling – ËšF (ËšC)50 – 114.8 (10 – 46)

Operating range – Heating – ËšF (ËšC)5 – 64.4 (-15 – 18)

Operating range – Ambient Cooling – ËšF (ËšC)5 – 114.8 (-15 – 46)

Indoor Unit

Indoor Unit Dimension – H – inch (mm)11-1/3 (288)

Indoor Unit Dimension – W – inch (mm)30-5/16 (770)

Indoor Unit Dimension – W – inch (mm)30-5/16 (770)

Indoor Unit Dimension – D – inch (mm)9-3/16 (234)

Sound Pressure Level(T/H/M/L/SL) – Cooling – dBA48/45/37/31/19

Sound Pressure Level(T/H/M/L/SL) – Heating – dBA47/43/36/30/26

Airflow (T/H/M/L/SL) – Cooling – CFM473/436/316/247/132

Airflow (T/H/M/L/SL) – Heating – CFM473/412/316/247/210

Indoor Unit weight – lbs (kg)21.4 (9.7)

Outdoor Unit

Outdoor Unit Dimension – H – inch (mm)21-11/16 (550)

Outdoor Unit Dimension – W – inch (mm)26-1/2 (675)

Outdoor Unit Dimension – D – inch (mm)11-3/16 (284)

Sound Pressure Level (H) – Cooling – dBA48

Sound Pressure Level (H) – Heating – dBA48
