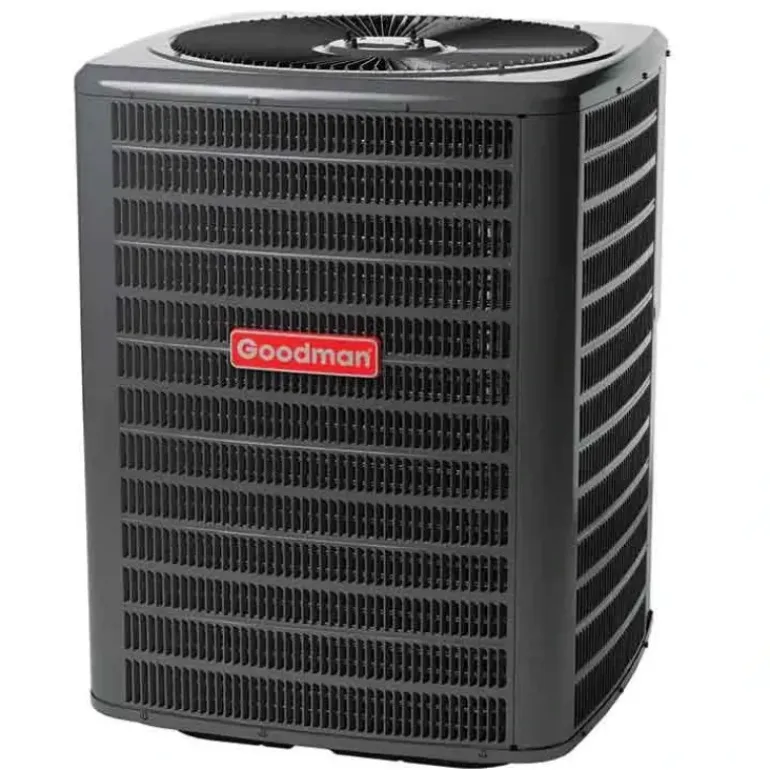

Goodman GSXN3N3010 2.5 Ton 13.4 SEER2 Air Conditioner Condenser – One-stop shop for professional tools and equipment.

Description

Product Description

Goodman – GSXN3N3010

The Goodman GSXN3N3010 is a cooling-only condenser unit. Providing a 13.4 SEER2 efficiency with a single stage, reciprocating compressor, the GSXN3N3010 is an inexpensive condenser to cool your home when paired with an AC coil.

QUICK FACTS

• Ideal size to cover a medium-sized house
• 2.5 ton, 13.4 SEER2 AC-only condenser
• Low sound output
• Fully charged for up to 15′ of line set
• Factory-installed filter drier

2.5 ton

The GSXN3N3010 condenser is a 2.5 ton AC only unit. In an ideal climate situation, the GSXN3N3010 can usually cover a medium-sized house. For this unit to function, an indoor air handler or coil is required, and this unit is cooling only with no heating capacity on its own.

13.4 SEER2

The Goodman GSXN3N3010 AC condenser is designed to be 13.4 SEER2. This is the lowest efficiency on the market today, making it an inexpensive option for northern states. Please note that this product is regulated by DOE Efficiency Standards.

Due to new efficiency requirements, this unit cannot be installed in the following states: Alabama, Arizona, Arkansas, California, Delaware, Florida, Georgia, Kentucky, Louisiana, Maryland, Mississippi, Nevada, New Mexico, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, and Virginia.

Warranty

The GSXN3N3010 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.

Durability and Reliability

With an enhanced copper tube and aluminum fin coil, the GSXN3N3010 is designed to prevent coil degradation. With the baked-on powder-paint finish, the condenser’s heavy-gauge galvanized-steel cabinet is approved for up to 500 hours of salt-spray. The factory-installed filter dryer lowers general wear-and-tear on the unit. All of these features provide you with a durable, reliable condenser to be used whenever you need to cool your home.

Installation and Maintenance

The Goodman GSXN3N3010 AC condenser comes standard with service valves that have sweat connections and easy-access gauge ports, both providing a lower installation difficulty and time to lower installation costs. The outer casing has both a top and a side access to allow for easier maintenance and warranty access when necessary.

Comfort in Mind

The Goodman brand always has its customer’s comfort in mind. The GSXN3N3010 is no exception, with not only using high-quality components but also providing enhanced sound-dampening features that allows the brand to manufacture some of the lowest sound output levels in the industry.

Additional Information

SKU GSXN3N3010

Weight (in lbs) 143.000000

Brand/Manufacturer Goodman

Replaces GSX130301

Cooling BTU 30,000

Decibel Level (dBA) 76

Refrigerant R410A

SEER2 (Efficiency) 13.4

Condenser Stages Single Stage

Compressor Type Rotary

Liquid Line 3/8″

Suction Line 3/4″

Liquid Valve Size 3/8″

Suction Valve Size 3/4″

Electrical 208 / 230 V. 1 Phase 60 Hz

Phase Single Phase

Max Breaker Size 25 amps

Min. Breaker Size 16.1 amps

Tonnage 2.5 Ton

Valve Type Sweat

Height 32.5″

Width 29″

Depth 29″

Warranty 10 Years with Online Registration
