ICM – ICM2915

DETAILS:

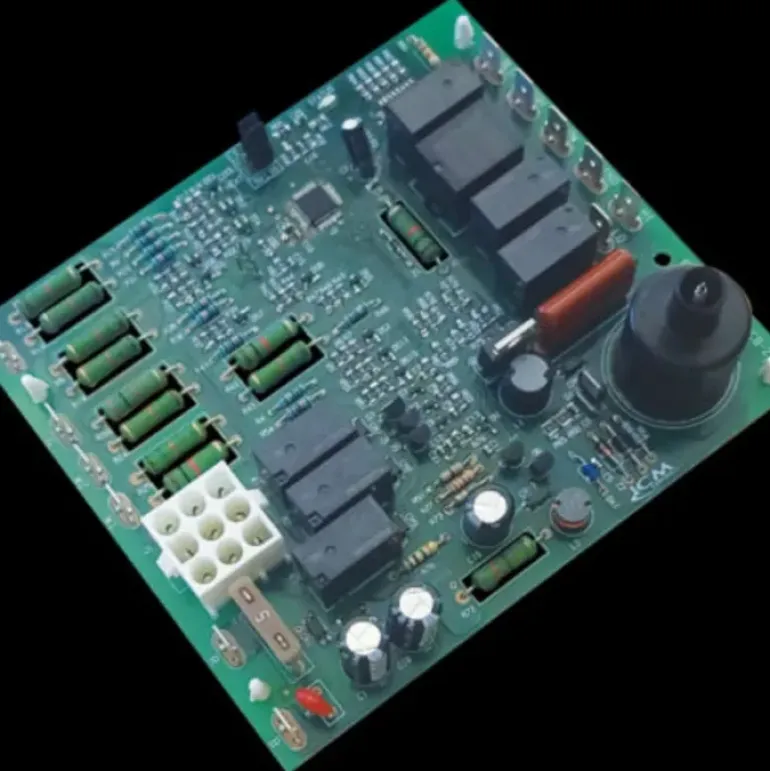

The ICM2915 is a form, fit, and functional replacement for Trane Spark Ignition Control: D674713P01 shown in the cross-reference section of this guide. The control boards are designed as automated gas ignition controls that monitor the ignition sequence including the inducer, pressure switch, spark ignition, gas valve, flame sense, and circulating blower while maintaining full safety circuit monitoring including the high limit switch, roll out switch and auxiliary limit switch circuits.

• Controls blower motors, gas valve, spark ignitor in sequence
• Protects against short cycling
• Selectable Heat/Cool blower off-delay time
• Flash codes from the onboard LED indicate specific problems for easier troubleshooting
• Repeated ignition failures or flame losses will disable heat operation for safety

WEIGHT/DIMENSIONS:

Weight: 0.38
Dimensions: 5.5″”L x 4.75″” W x 1.5″”H

SPECIFICATIONS:

Line voltage:

230 VAC

Line frequency:

50/60 Hz

Control voltage:

18-30 VAC

Circulating blower:

4 FLA @ 277 VAC

Hi-efficiency blower:

10mA @ 24 VAC

Inducer blower:

0.7 FLA, 1.5 LRA @ 24 VAC

Combined gas valve load:

1.5A @ 24 VAC

Minimum flame signal threshold:

0.75 uA
