Innovair EIN13H2V32 Energystar Elite Hyper Heat Pump Single Zone Mini Split Systems (12000 BTU) – One-stop shop for professional tools and equipment.

Description

Product Description

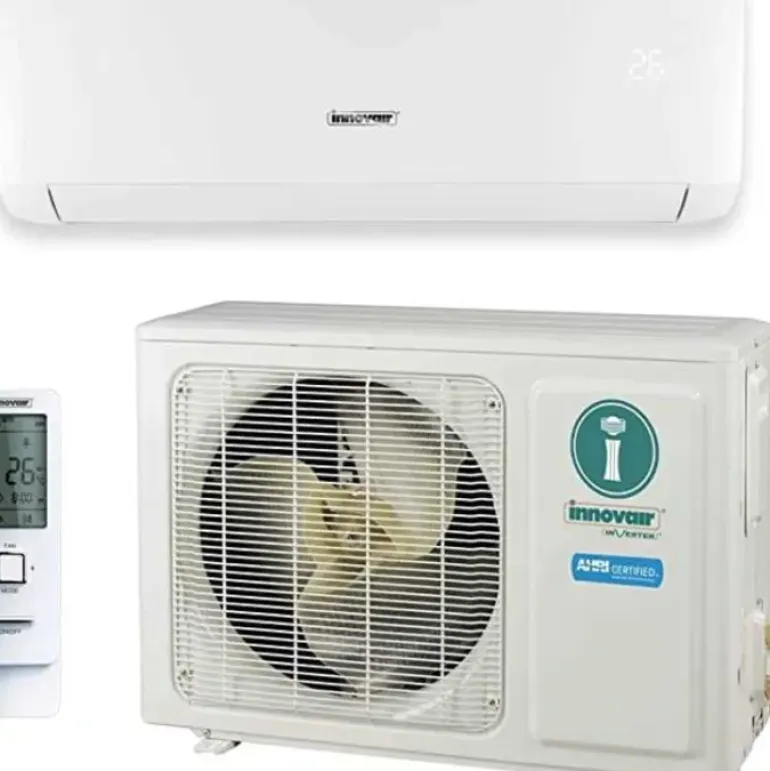

Innovair – EIN13H2V32

With an option for horizontal or vertical swing function, the air flow is distributed evenly making it feel comfortable at all areas of the room.Heating belt is fitted on the base plate of the outdoor unit to prevent water accumulation, which improves heat transfer efficiency.

Stay warm inside while its cold outside.Gold fin condensers help to protect the condenser coils from external damage and thus improves the overall life of air conditioners.In the case of abnormal operation, the unit will protect the system by shutting down automatically. Meanwhile, the error code enables engineers to identify the problem quickly.

One click to limit the maximum frequency current while still maintain the room temperature within the optimal temperature, guarantee a cool night sleep with maximum energy saving.Prevents evaporator from freezing and maintains dehumidifying effect in low temperature environments.With this function, the air conditioner will maximize the output of cooling capacity, making the room cool down rapidly, and attain the desired temperature in the shortest time.

Features:

Remote control has a sensor built-in for a more accurate reading

Directional air-outlet moves automatically both horizontal and vertical

AHRI Certified Units

Clear coated control boards to protect against corrosion

Dry mode allows to remove excess humidity without changing the temperature

Energy Star Certified Units

ETL Certified

Maximum efficiency with stable operation during extreme weather

More resistant to oxidation and corrosion than ordinary blue fin

Can operate as a Heat Pump or Cooling System

Able to maintain cooling operation with outdoor temperatures as high as 129°F

To protect your system’s air quality from unwanted dust

High Efficiency Unit

Internal protection against irregular power

Hyper Heat Mode

Installation Kit Included

Insulated copper lines, communication cable, and other accessories included

Additional Information

MODELEIN13H2V32

System Specifications -:

Capacity-BTU/H12,000

Electrical-Volt / Hertz
MOCP (A)208~230V / 60Hz
15.0

Cooling-Rated Current (A)6.5

Cooling-SEER30.5

Heating-Rated Current (A)6.9

Heating-HSPF14.0

Oper. Ambient Temp.-Cooling (°F )0°F~129°F~

Oper. Ambient Temp.-Heating (°F )-22°F~75°F

Circuit Breaker Size-(A)15.0

Moisture Removal-Liter/Hr1.4

Refrigerant-R410A (oz)49.4

Refrigerant-Additional Refrigerant (oz/Ft)0.2

Refrigerant-Liquid (in)1/4″

Refrigerant-Suction (in)1/2″

Refrigerant Connections-Pre-Charged Length (Ft)25

Refrigerant Connections-Maximum Length (Ft)98

Refrigerant Connections-Maximum Height (Ft)49

Indoor Unit Specifications -:

Air Flow-CFM235 ~ 500

Sound Level-dB(A)32 ~ 59

Control-Remote ControlLCD WIRELES REMOTE CONTROL and WIFI

Control-Tempearture Range61°F~86°F

Dimensions-Unit W x H x D (in)38 ¼ x 11 ¾ x 9

Weight-Net / Gross (LBs.)30

Outdoor Unit Specifications -:

Compressor-RLA6.9

Compressor Sound Level-dB(A)63

Compressor Weight99 Lbs

Compressor Dimensions-Unit W x H x D (in)35 ½ x 23 ½ x 14 ¾
