Innovair PIN12H2V51 Pure Heat Pump Single Zone Mini Split System (12000 BTU) – One-stop shop for professional tools and equipment.

Description

Product Description

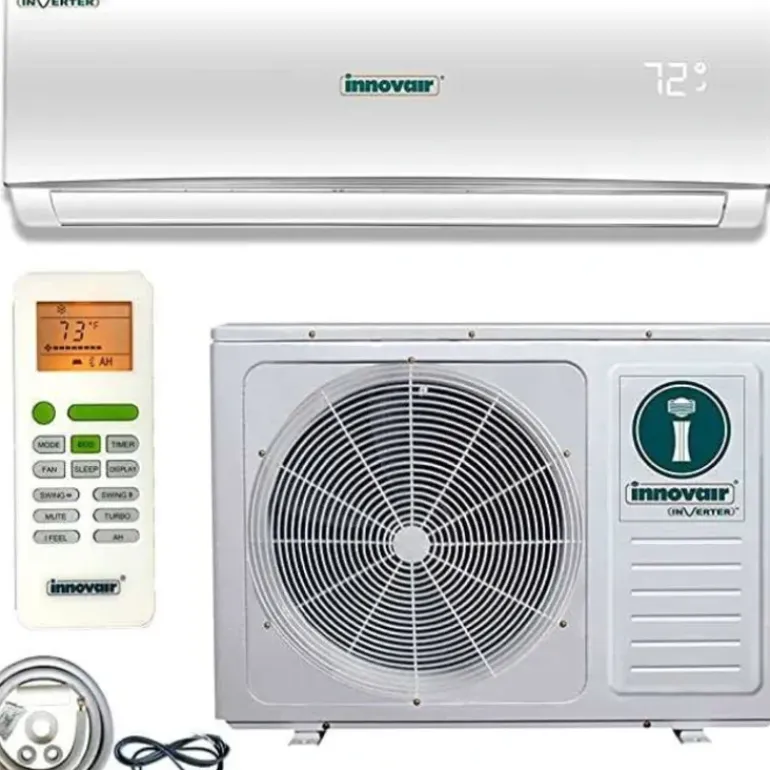

Innovair – PIN12H2V51

Catechin filter remove odors and remove dust and particles from the air and room. The Active Carbon filter helps eliminate bacteria and prevent unpleasant odors. Emits Vitamin C through the air to everyone for healthier skin Catalyst filter protects against unwanted air particles from circulating.With an option for horizontal or vertical swing function, the air flow is distributed evenly making it feel comfortable at all areas of the room.

Heating belt is fitted on the base plate of the outdoor unit to prevent water accumulation, which improves heat transfer efficiency.Unlike traditional compressors that turn on and off multiple times, Innovairžs inverter compressors feature variable power that automatically adjusts the running speed to maintain the desired temperature. That way, an Innovair unit runs quietly and features significant energy savings.

The Innovair Mini split can cool down an indoor space to a desired, comfortable indoor temperature, even when outside temperatures reach up to 122°F.High density filters remove bacteria from the air, providing a cleaner environment for your area.Innovair Mini splits can be a primary heating source with its ability to operate at cold outdoor temperatures. Stay warm inside while its cold outside.Gold fin condensers help to protect the condenser coils from external damage and thus improves the overall life of air conditioners.In the case of abnormal operation, the unit will protect the system by shutting down automatically.

Features:

• High Efficiency Inverter Technology
• Remote control has a sensor built-in for a more accurate reading
• Inverter Technology delivering up to 19 SEER Rated Efficiency
• Directional air-outlet moves automatically both horizontal and vertical
• Clear coated control boards to protect against corrosion
• Dry mode allows to remove excess humidity without changing the temperature
• Able to maintain cooling operation with outdoor temperatures as high as 129°F
• High Density Washable Filter To protect your system’s air quality from unwanted dust
• Internal protection against irregular power
• R410a Eco Friendly refrigerant for a cleaner environment
• Quickly cools down at higher fan speeds to reach set temperature

Additional Information

MODELPIN12H2V51

System Specifications :

CAPACITY (BTU/H)12,000

ELECTRICAL (Volt / Hertz)208~230V / 60Hz

ELECTRICAL (MOCP (A))10

COOLING (Rated Current (A))4.9

COOLING (SEER)19

HEATING (Rated Current (A))4.9

HEATING (HSPF)9.5

OPER. AMBIENT TEMP. (Cooling (°F ))5 °F~122°F

OPER. AMBIENT TEMP. (Heating (°F ))-13 °F ~86 °F

CIRCUIT BREAKER SIZE ((A))15.0

MOISTURE REMOVAL (Liter/Hr)1.6

REFRIGERANT (R410A (oz))34.2

REFRIGERANT (Liquid (in))1/4″

REFRIGERANT (Suction (in))3/8″

REFRIGERANT CONNECTIONS (Pre-Charged Length (Ft))25

REFRIGERANT CONNECTIONS (Maximum Length (Ft))50

REFRIGERANT CONNECTIONS (Maximum Height (Ft))
16.4

Indoor Air Handler Specifications :

AIR FLOW (CFM)205 ~ 425

SOUND LEVEL (dB(A))34 ~ 40

CONTROL (Remote Control)LCD WIRELES REMOTECONTROL and WIFI

CONTROL (Tempearture Range)62 °F ~86 °F

DIMENSIONS (Unit W x H x D (in))32 x 11 ½ x 8

WEIGHT (Unit Net (LBs.))17.6

Outdoor Condendor Specifications :

COMPRESSOR (RLA)7.1

SOUND LEVEL (dB(A))52

DIMENSIONS (Unit W x H x D (in))28 ¼ x 19 ½ x 9 ½

WEIGHT (Unit Net (LBs.))59.5
