Description

Product Description

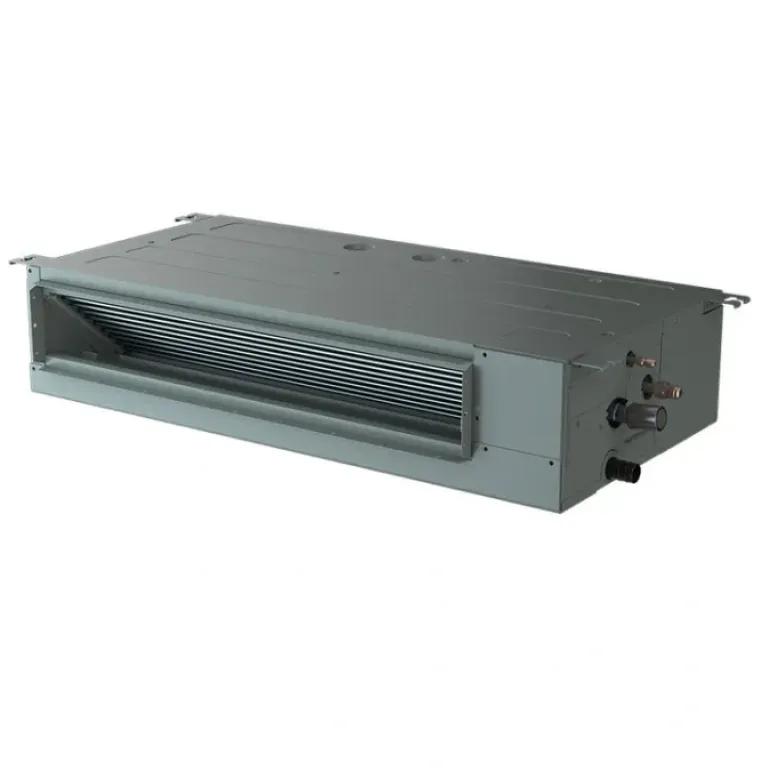

Innovair – VTM13H7C7

Air suction direction can be altered from rear to bottom suction, giving a choice for multiple types of applications.Hyper Heat assures consistent comfort specialized for extreme climates. Condenser heat output capacity allows the unit to work efficiently as a primary heat source, even when temperature drops to -13°F.Mix and match different types of indoor units which include high wall mounts, cassettes, and/or ducted units.

Fresh air intake introduces outdoor fresh air into the room to improve air quality.With the 360 degree air flow panel, air is uniformly distributed to every corner of the room.With an option for horizontal or vertical swing function, the air flow is distributed evenly, making it feel comfortable at all areas of the room.

The Innovair Mini split can cool down an indoor space to a desired, comfortable indoor temperature, even when outside temperatures reach up to 122°F.Innovair Mini splits can be a primary heating source with its ability to operate at cold outdoor temperatures. Stay warm inside while its cold outside.No more fighting over the thermostat when everyone wants their own personal comfort.

Features:

• Variable DC Motor for efficient and quiet operation
• Compressor with inverter DC can increase the efficiency of the air conditioner
• Air outside can be led into the room via a connection pipe, which keeps the indoor air fresh and healthy
• 360° air outlet provides strong air flow circulation to cool or every corner of a room
• High Efficiency Inverter Technology
• Dry mode allows to remove excess humidity without changing the temperature
• Eco Friendly refrigerant for a cleaner environment
• Operations will self adjust while operating at low sound levels
• Quickly cools down at higher fan speeds to reach set temperature
• Stable operations with wide voltage range

Additional Information

Model NameVTM13H7C7

Nominal Capacity – Cooling(Btu/h)12,000

Nominal Capacity – Heating(Btu/h)13,000

Power Supply(V/Hz/Ph)1Ph/208~230V/60Hz

Airflow- H/M/L(CFM)395/235/180

External Static Pressure(Pa)0~50

Moisture Removal(L/Hr)1.4

Sound Pressure Level – H/M/L(db (A))39/32

Unit Dimension (WxHxD)(inches)27 ½ x 24 x 8

Package Dimension (WxHxD)(inches)35 x 29 x 12

Net/Gross Weight(lbs)51/64

Piping Connections (Gas/Suction)(inches)3/8

Piping Connections (Liquid)(inches)1/4
