Description

Product Description

iO HVAC Controls – MD-1006 ACTUATORS ARE INSTALLED ON 2ND DIMENSION

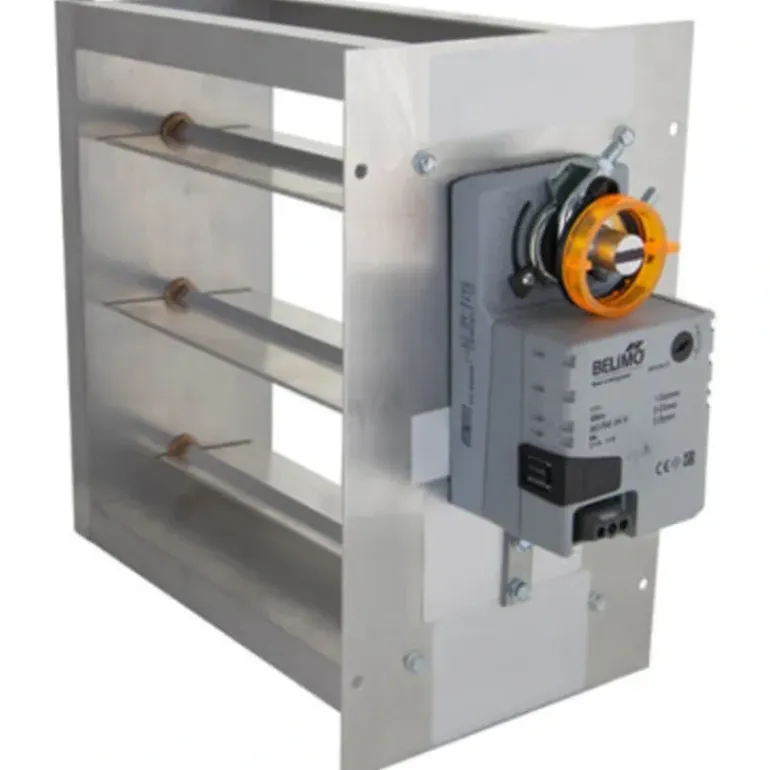

MD Series 10×06 (3) Wire Damper PO/PC

Height: 10

Width: 6

Total Size: 10 x 06

Actuator Placement on the dimension: 6

Description

The MD Series dampers are perfect for use with most zoning systems and recommended for use with our iO-ESP-400 and ESP zone panels. These dampers are shipped complete and ready for installation. The MD Series dampers can be installed in any position. They are rated for duct systems less than 1.0” WC. The MD Series damper has a simple adjustment for setting the minimum position.

Features and Benefits

• Two-position 24V motor; power close/power open, 3-wire
• Compatible with iO-ESP-400 and iO Zone ESP
• Quiet operation
• Simple adjustment for setting the minimum position

Warranty: 5 years

Construction Rectangular: extruded aluminum

Sizes: Rectangular: 6” x 6” to 30” x 20” side-mount and bottom-mount

Damper Actuator Type: 24VAC, 2.5VA, three-wire power open/power close

Timing: 60 seconds

Additional Information

Item NumberMD-1006

BrandiO HVAC Controls

MotorizedYes

ShapeRectangular

Size (in)10 x 6

Spring ReturnSpring Return

TypeRectangular Dampers
