iO HVAC Controls MD-1208 Md Series 12X08 (3) Wire Damper Po/Pc – One-stop shop for professional tools and equipment.

Description

Product Description

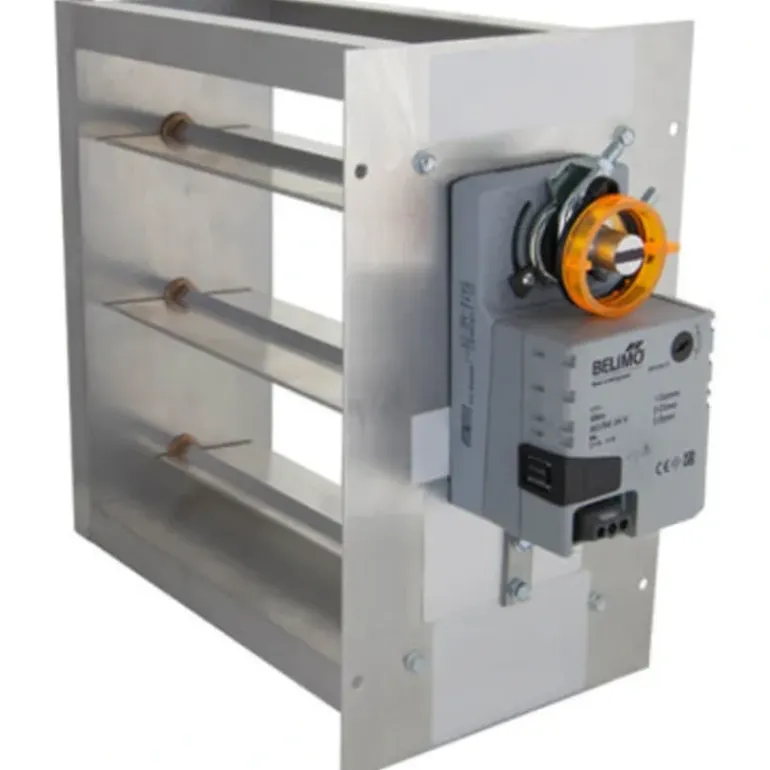

iO HVAC Controls – MD-1208 ACTUATORS ARE INSTALLED ON 2ND DIMENSION

MD Series 12×08 (3) Wire Damper PO/PC

Height: 12

Width: 8

Total Size: 12 x 08

Actuator Placement on the dimension: 8

Description

The MD Series dampers are perfect for use with most zoning systems and recommended for use
with our iO-ESP-400 and ESP zone panels. These dampers are shipped complete and ready
for installation. The MD Series dampers can be installed in any position. They are rated for duct
systems less than 1.0” WC. The MD Series damper has a simple adjustment for setting the
minimum position.

Features and Benefits:

• Two-position 24V motor; power close/power open, 3-wire
• Compatible with iO-ESP-400 and iO Zone ESP
• Quiet operation
• Simple adjustment for setting the minimum position

Warranty: 5 years

Construction: Rectangular: extruded aluminum

Size: Rectangular: 6” x 6” to 30” x 20” side-mount and bottom-mount

Damper Actuator Type: 24VAC, 2.5VA, three-wire power open/power close

Timing: 60 seconds

Additional Information

Item NumberMD-1208

BrandiO HVAC Controls

MotorizedYes

ShapeRectangular

Size (in)12 x 8

Spring ReturnSpring Return

TypeRectangular Dampers
