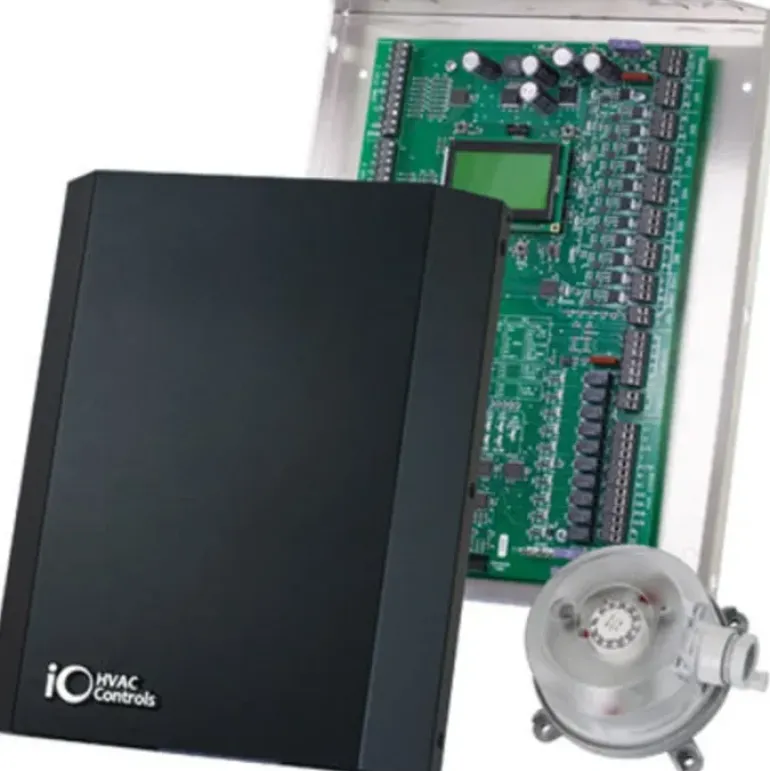

iO HVAC Controls – ZP6-ESP Six Zone (4H/2C) Panel w/ ESP

Six Zone (4H/2C) Panel w/ ESP

The ZP6-ESP is a 6 zone panel that integrates our award winning ESP technology to completely eliminate the need to install a bypass damper. This 4H/2C zone panel comes with a static pressure sensor. The system works like any standard zone control system with one exception; a static pressure sensor continuously monitors the system static pressure. If the static pressure goes above setpoint, the ESP panel will power the non-calling zone dampers open just enough to relieve the excess pressure. Tests indicate that bleeding a small amount of conditioned air for a short time into non-calling zones has little to no impact on the zone temperature.

The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment. Programmable LCD and slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.

Features and Benefits:

• 6 zones expandable up to 12
• Auto changeover
• Cooling priority or majority wins
• Twenty minute time share option
• Optional night thermostat
• Humidification/Dehumidification pass-throughs
• Staging by zone thermostat or stage timer
• Purge cycle option
• DK and BK terminals work with most variable speed blowers
• For use with 3 wire dampers
• Adjustable high and low limit
• Adjustable high and low balance point
• Equipment fault pass-through indicator
• LCD displays: Discharge air temperature, return air temperature and outdoor temperature

Warranty: 10 years

Additional Information

Item NumberZP6-ESP

BrandiO HVAC Controls

TypeZoning Panel
