Description

Product Description

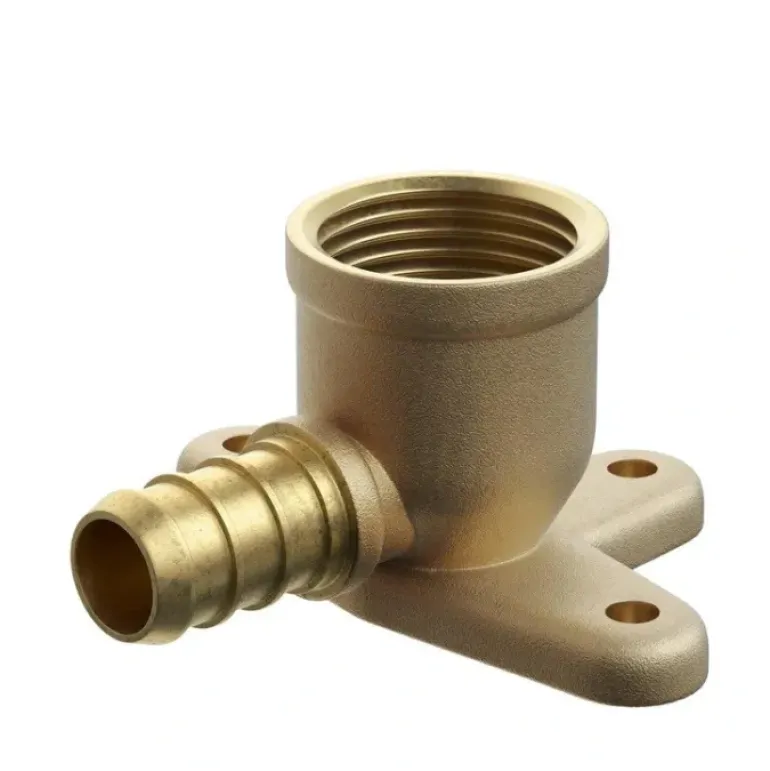

Jones Stephens – C76079LF Manufactured to the highest industry standards, Jones Stephens’ F1807 lead-free brass crimp fittings provide precise, leak-free connections. The secure and reliable crimp fitting method provides full, immediate strength upon installation, with 360-degree uniform pressure. Approved for use with PEX piping.

• Simple and dependable plumbing connection
• Easy installation
• Leak-proof connections
• Lead-free brass
• Certified to ASTM F1807-2019b
• Certified to NSF/ANSI/ CAN 372-2022, NSF/ANSI/CAN 61-2021, and NSF/ANSI 14-2016a
• Certified to CSA B137.5-2017
• cUPC listed
• Lead law compliant

Additional Information

Country of Origin:China

Material:Brass

Size:1/2″ x 1/2″

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Max Temperature:180°F

Max Pressure:100 psi

Temperature Range:33°F – 180°F

Working Pressure:100 psi

Working Temperature:180°F

Approved Applications:Water

Color:Brass

Compatible Pipe:Compatible Pipe:

PEX-BPEX-A

Compatible Pipe Size:1/2″

Warranty:11-25 Year

ADA Compliant:No

CEC Listed:No

cUPC Listed:Yes

UPC Listed:No

End Connections:End Connections:

Crimp PEXFIP

ANSI Standard:ANSI Standard:

ANSI Standard:ANSI 14-2016a

ANSI 61-2021ANSI 372-2022

ASTM Standard:ASTM F1807-2019b

CEC Compliant:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF Standard:

NSF Standard:NSF 14-2016a

NSF 61-2021NSF 372-2022

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:

CAN 61-2021CAN 372-2022
