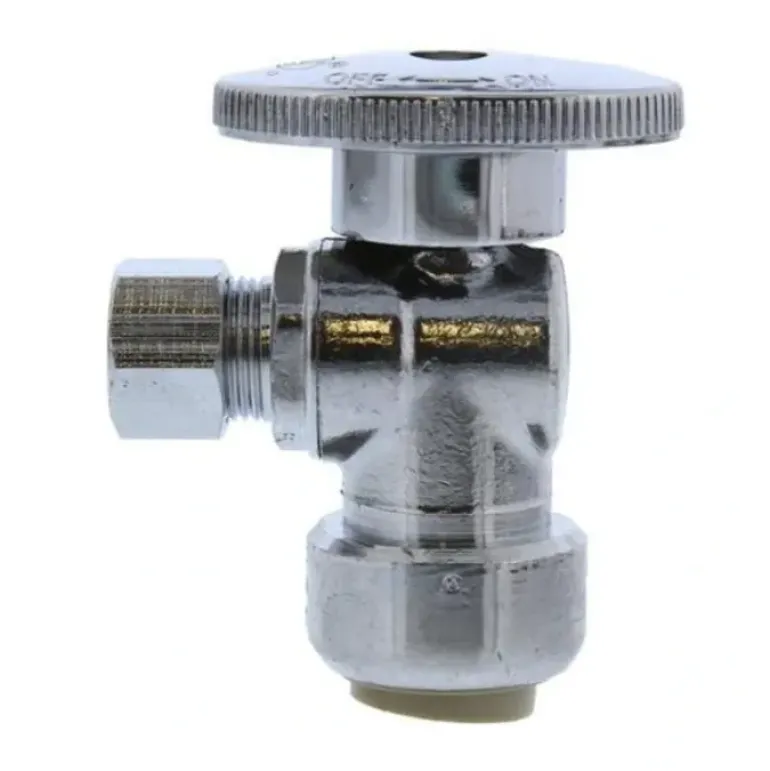

Jones Stephens C76571LF 1/2& x 3/8& OD COMP PlumBite® Push On Supply Stop, Angle – One-stop shop for professional tools and equipment.

Description

Product Description

Jones Stephens – C76571LF Jones Stephens PlumBite® push on fittings are an extremely fast method of joining Copper, CPVC, PE-RT or PEX piping. No soldering, glue, heat or tools are required to join the pipe. Simply insert the pipe into the fitting and the stainless steel gripper ring bites the pipe holding it tightly. A rugged EPDM O-ring seals the connection. Disassembly is just as fast using the optional disassembly tool, so fittings can be easily removed and re-used. PlumBite push on fittings are designed to connect pipe with ease and confidence while saving time on the job site. Perfect for service and repair jobs!

• Heat-free method for joining copper, CPVC, PEX or PE-RT tubing
• No soldering, glue, heat or tools required to join the pipe
• Stainless steel gripper ring and EPDM O-ring create a secure connection and seal
• Maximum temperature of 180°F and maximum pressure of 200 PSI
• Standards/Certifications: NSF/ANSI/CAN 61: Q = 0.5, NSF/ANSI/CAN 372, ASME A112.18.1/CSA B125.1, UPC, cUPC by IAPMO
• Lead Free
• 2 year warranty

Additional Information

Country of Origin:China

Material:Brass

Size:1/2″ x 3/8″

Valve Operator:Lever Handle

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Max Temperature:180°F

Max Pressure:200 psi

Temperature Range:40°F -140°F

Working Temperature:40°F – 140°F

Approved Applications:Potable Water

Color:Chrome Plated

Gasket Material:EPDM, Peroxide Cured

Turn Type:Quarter-Turn

Warranty:2 Year

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:End Connections:

PushCompression

ANSI Standard:ANSI Standard:

ANSI Standard:ANSI 372-2022

ANSI 61-2021: Q 0.5

ASME Standard:ASME A112.18.1-2018

CEC Compliant:No

CSA Listed:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:Yes

NSF Certified:No

NSF Standard:NSF Standard:

NSF Standard:NSF 372-2022

NSF 61-2021: Q 0.5

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN Standard:

CAN 372-2022CAN 61-2021: Q
