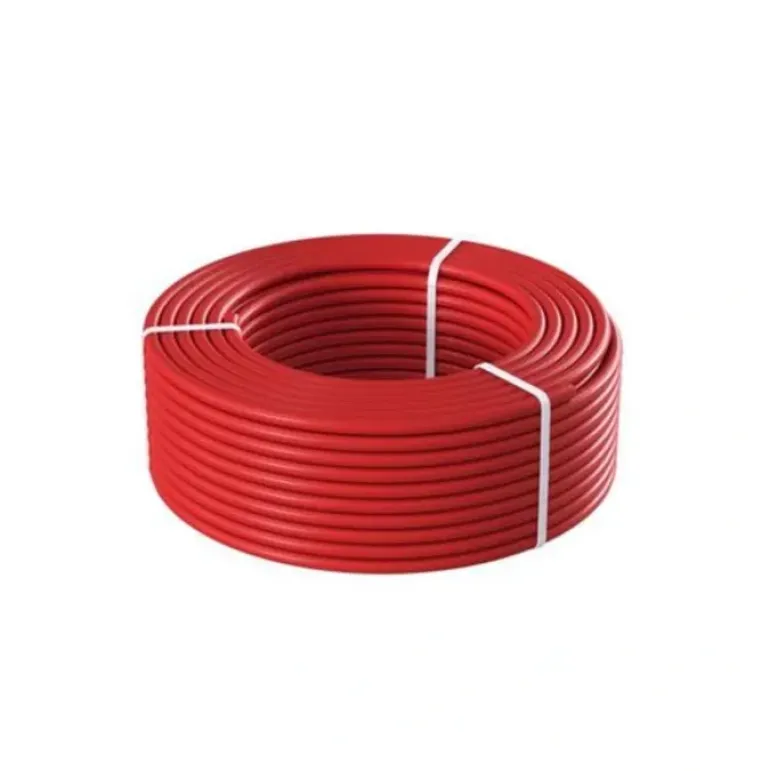

Jones Stephens F76796 1/2& x 300' Red PEX-A Pipe for Potable Water, Coil – One-stop shop for professional tools and equipment.

Description

Product Description

Jones Stephens – F76796 With its superior, durable crosslinking pattern, Jones Stephens’ PEX-A pipe is highly flexible. It creates less kinking and requires less fittings compared to alternate piping methods, making installation simple and saving the installer time and energy. PEX-A pipe expands to absorb the sound of water hammer – providing quiet operation. Manufactured to the highest industry standards, PEX-A pipe is freeze resistant, corrosion resistant, and energy efficient. Approved for use with F1960 expansion fittings.

• Crosslinked polyethylene; PEX 5106
• Approved for use with F1960 fittings
• Easy installation
• Corrosion resistant
• Quiet operation
• Approved for use in potable plumbing applications
• NSF certified to ASTM F876/877 and CSA B137.5 per NSF/ANSI 14, 61 and 372
• NSF/ANSI 14 and 61 approved
• ASTM E84, ASTM F876, ASTM F877, and ASTM F2023 approved

Additional Information

Country of Origin:Spain

Compatible Valve Type:Compatible Valve Type:

Compatible Valve Type:F1960

F1807F2159

Inlet Connection Size:1/2″

Material:Crosslinked Polyethylene

Outlet Connection Size:1/2″

ID:0.485″

OD:0.625″

Max Temperature:203°F

Pipe/Tubing Size:1/2″

Max Pressure:160 psi

Temperature Range:73°F – 180°F

Tensile Strength:2900 psi

Working Pressure:100 psi

Working Temperature:180°F

Approved Applications:Water

Color:Red

Length:300′

Wall Thickness:.070″

Warranty:11-25 Year

AB100 Certified:N/A

ADA Compliant:No

CEC Listed:No

cUPC Listed:No

End Connections:Tube

ANSI Standard:ANSI Standard:

ANSI Standard:ANSI 14

ANSI 61ANSI 372

ASTM Standard:ASTM Standard:

ASTM F876ASTM F877

CEC Compliant:No

CSA Listed:No

IAPMO Listed:No

Lead Law Compliant:Yes

MASS Approved:Yes

NSF Certified:Yes

NSF Standard:NSF Standard:

NSF Standard:NSF 14

NSF 61NSF 372

SDWA Compliant:Yes

HAZMAT:No

CAN Standard:CAN 61
