Klein Tools 69149P Test Kit with Multimeter, Non-Contact Volt Tester, Receptacle Tester – One-stop shop for professional tools and equipment.

Description

Product Description

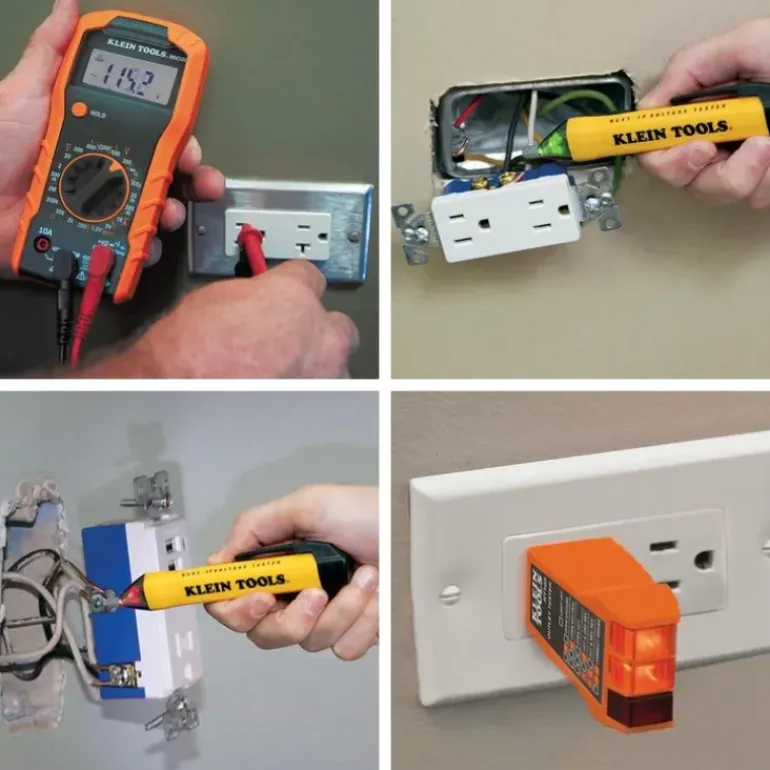

Klein Tools – 69149P Klein Tools Multimeter Test Kit contains Cat. No. MM300 (Manual-Ranging Digital Multimeter), Cat. No. NCVT1P (Non-Contact Voltage Tester) and Cat. No. RT105 (Receptacle Tester). The MM300 measures DC current, AC/DC voltage and resistance. The NCVT1P automatically detects standard voltage in cables, cords, circuit breakers, lighting fixtures, switches, outlets, and wires. The RT105 detects the most common wiring problems in standard receptacles.

• Multimeter measures up to 600V AC/DC voltage, 10A DC current and 2MOhms resistance
• Non-Contact Voltage Tester Cat. No. NCVT1P has a bright green LED to indicate the tester is working; it changes to red and audible tones sound when voltage is detected
• NCVT1P has a high intensity, bright red LED that illuminates and an audible tone when voltage is detected from 50 to 1000 VAC power operating range
• Receptacle tester detects wiring configurations and indicates correct wiring, and identifies common wiring faults
• Identifies open ground, open hot, open neutral, hot/ground reversed; it does not indicate quality of ground, multiple hot wires, or a combination of defects
• MM300 multimeter tests continuity with visual and audible continuity indicators
• Test leads included for Cat. No. MM300; batteries included for Cat. Nos. NCVT1P and MM300

Additional Information

Type:Electrical Test Kit

Application:Testing and Measuring Voltage

Special Features:MM300: Low Battery Indicator; NCVT-1P: Pocket Clip

Overall Length:6″” (15.2 cm)

Overall Height:1.78″” (4.5 cm)

Overall Width:3.16″” (8 cm)

Material:Polymer Body and Electronic Components

Batteries:MM300: 2 x AAA; NCVT-1P: 2 x AAA

Included:MM300 Manual-Ranging Digital Multimeter with Right-angle Test Leads; NCVT1P Non-Contact Voltage Tester; RT105 Receptacle Tester with Test Leads; Instructions; and All Required Batteries

Standard:MM300: CAT III 600V; NCVT1P: CAT IV 1000V

Weight:8.2 oz (231 g)
