Description

Product Description

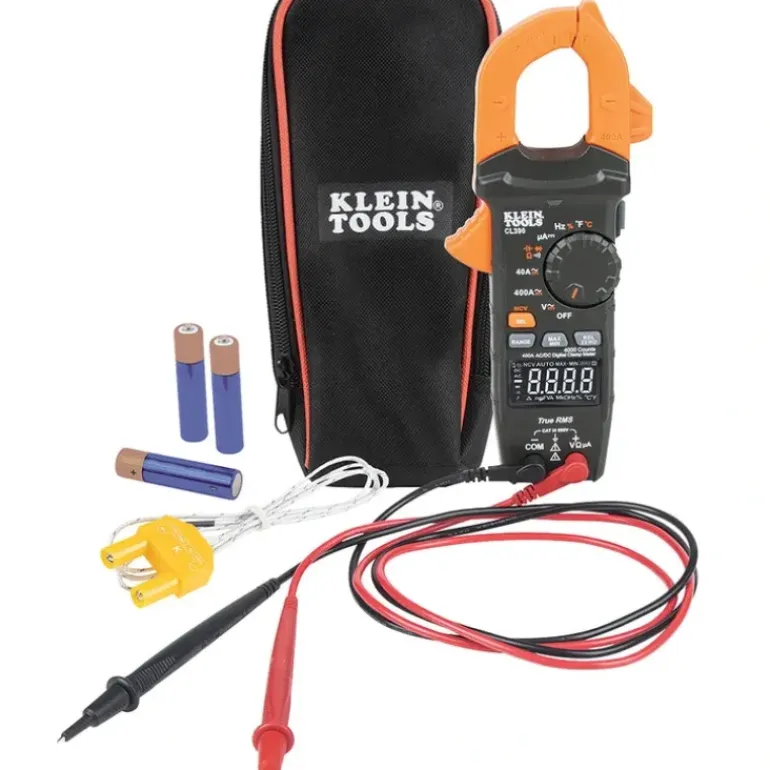

Klein Tools – CL390 Klein Tools CL390 is an automatically ranging true root mean squared (TRMS) digital clamp meter. It measures AC/DC current and NCVT via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and diodes via test leads, and temperature via a thermocouple probe. It features a high visibility, reverse contrast LCD display that optimizes view ability both in dark or bright ambient lighting.

• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• Non-contact voltage tester integrated into the clamp jaw
• High-visibility reverse contrast LCD display for improved view ability in all ambient lighting conditions
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Measures AC/DC current and NCVT via clamp and AC/DC voltage, resistance, frequency, DC microamps, capacitance, duty cycle, diode test, and continuity via test-leads, and temperature with thermocouple
• Measures temperature with a K-Type thermocouple probe
• Max/Min, Rel/Zero and Data Hold capability
• Auto-power off after 10 minutes to conserve battery life
• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Low battery indicator and easily accessible battery compartment
• Built to withstand a 6.6-Foot (2 m) drop
• CAT III 600V, Class 2, Double insulation safety rating
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Additional Information

Type:AC/DC Current TRMS Clamp

Application:Measures both AC/DC current and NCVT via the clamp and AC/DC voltage, DC microamp current, resistance, continuity, frequency, duty-cycle, capacitance and tests diodes via the test leads, and temperature with thermocouple

Special Features:Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; AC/DC Current Measurement; High Visibility Reverse Contrast LCD; NCVT

Material:ABS/Electronics

Batteries:3 x AAA

Auto-Power Off:Yes

Jaw Size:1.6″” (4.1 cm)

Drop Protection:6.6″ (2 m)

Display:4000 Count Reverse Contrast LCD

Functions:TRMS, AC/DC Current, NCVT, AC/DC Voltage, Resistance, DC microamp, Frequency, Capacitance, Continuity, Duty Cycle, Diode Test, and Temperature

Voltage:600 V AC/DC

Frequency:10 Hz to 60 kHz for 8 V to 220 V AC RMS

Current:400 A AC/DC

Capacitance:4000 µF

Ohms (Resistance):40 M„¦

AC Voltage:600 V

DC Voltage:600 V

DC Polarity Indicator:Yes

DC Micro-Amp:200 µA

Temperature Range:-40° – 1832°F (-40° – 1000°C)

Standard:CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified

Included:Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries

Overall Length:8.45″” (21.5 cm)

Overall Height:1.5″” (3.8 cm)

Overall Width:3.5″” (8.9 cm)

Weight:11 oz (314 g)
