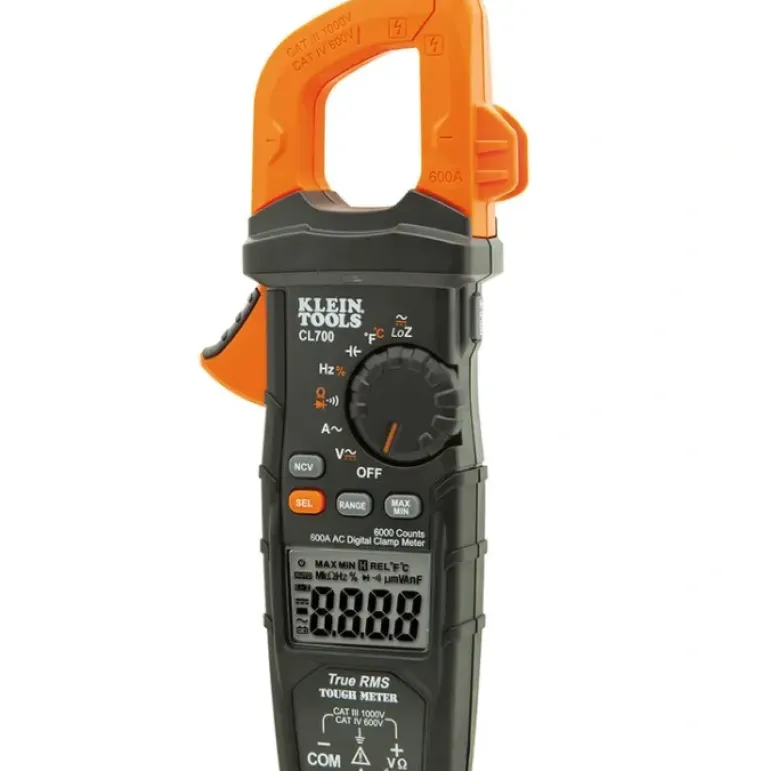

Klein Tools CL700 Digital Clamp Meter, AC Auto-Ranging TRMS, Low Impedance (LoZ) Mode – One-stop shop for professional tools and equipment.

Description

Product Description

Klein Tools – CL700 Klein Tools CL700 Electrical Tester is an automatically ranging true root mean squared (TRMS) digital clamp meter that measures AC current via the clamp, and measures AC/DC voltage, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. It also features a Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages. Klein Tools™ Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters loaded with innovative, time-saving features.

• Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
• Electronic Tester’s clamp measures AC current and its thermocouple probe measures temperature
• Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
• Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
• CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
• Built to withstand a 6.6-Foot (2 m) drop
• Low battery indicator and easily accessible battery compartment
• Includes a carrying pouch, test leads, thermocouple with adapter and batteries
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
• Operating Temperature: 32-degrees F to 104-degrees F (0-degrees C to 40-degrees C)
• Operating altitude to 6562-Foot (2000 m)

Additional Information

Application:Measures AC Current

Special Features:Features Low Battery Indicator

Batteries:2 x AAA

Jaw Size:1.38″” (3.5 cm)

Drop Protection:6.6″ (2 m)

Display:6000 Count LCD

Functions:Clamp measures AC current and thermocouple probe measures temperature. Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes

Voltage:1000V AC; 1000V DC

Frequency:1Hz – 500 KHz

Current:600A

Capacitance:6000µF

Ohms (Resistance):60MO

Temperature Range:-14° – 1000°F (-26° – 538°C)

Ingress Protection:IP40

Standard:CAT IV 600V; CE Certified

Included:Carrying Case, Test Leads, Thermocouple with Adapter, and Batteries

Overall Length:9.09″” (23.1 cm)

Overall Height:1.55″” (3.9 cm)

Overall Width:3.81″” (9.7 cm)

Weight:11.8 oz (335 g)
