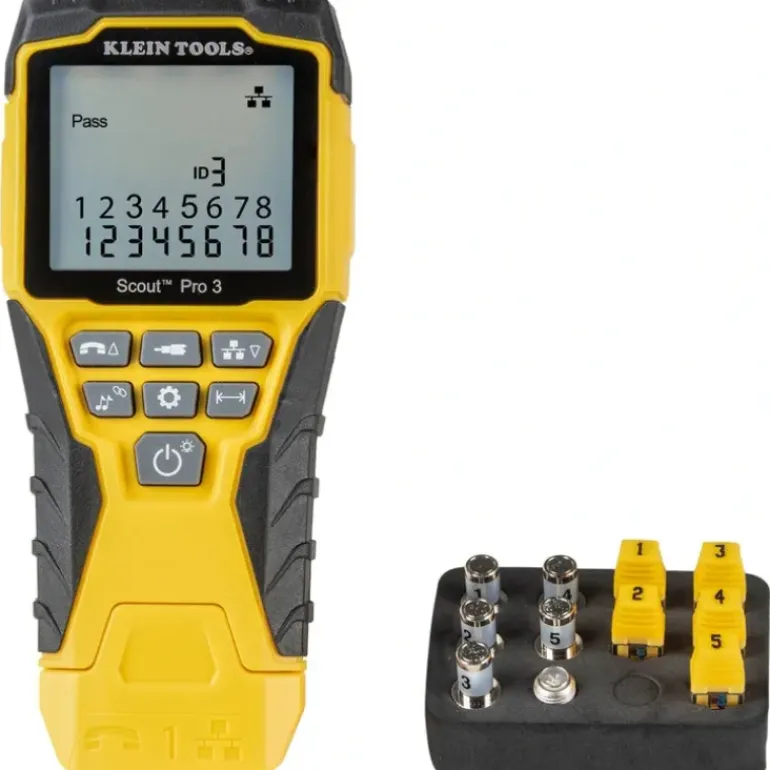

Klein Tools VDV501-851 Cable Tester Kit with Scout® Pro 3 Tester, Remotes, Adapter, Battery – One-stop shop for professional tools and equipment.

Description

Product Description

Klein Tools – VDV501-851 The Scout® Pro 3 Tester Starter Kit is a versatile cable tester that locates and tests voice, data and video cables. Identify multiple cable runs with included location mapping remotes. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.

• Cable tester tests voice (RJ11/12), data (RJ45) and video (coax F-connector) terminated cables with clearly defined results
• Measure cable length up to 2000 feet (610 m)
• Test for Open, Short, Miswire or Split-Pair faults
• Backlit LCD screen displays cable length, wiremap, cable ID and test results
• Trace cables, wire pairs and individual conductor wires with multiple style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
• Hub blink mode to identify port location on a hub or a switch
• LanMap and CoaxMap Location Remotes (5 each) map and ID multiple cable runs in a single step
• Includes voltage warning, shield detection, low battery indicator, a self-storing remote, and auto power off feature to conserve battery life (9V included)
• Auto Power-off feature to conserve battery life (9V included)
• Kit includes: Scout® Pro 3 Tester, (1) self-storing remote, (5) LanMap RJ45 locator remotes, (5) CoaxMap F-connector locator remotes, (1) coax F-connector, manual and 9V battery

Additional Information

Type:Twisted Pair, DATA, Voice, LAN, and Coaxial

Application:Cable Testing

Special Features:Measures Cable Length; Backlit LCD; Hub Blink

Cable Type:DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q

Overall Length:7″” (17.8 cm)

Overall Height:3″” (7.6 cm)

Overall Width:1.25″” (3.2 cm)

Material:Plastic and Metal

Test-n-Map ID Remotes:(1) Self-Storing

Location ID:(5) RJ45 Data and (5) F-Coax connector Locator Remotes

Batteries:9V Alkaline

Battery Life:Active: 50 hr

Drop Protection:2 m

Supported Remotes:18

Connection Adapter Types:RJ11, RJ12, RJ45, Coax F

Display:Backlit LCD

Multiple Style Tone Generator:Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately

Faults Detected:Open, Short, Miswire

Test Measure Types:Ethernet / Data and Coaxial

Included:Tester, Self-Storing Remote, (5) LanMap RJ45 Locator Remotes, (5) CoaxMap F-connector Locator Remotes, (1) Coax F-adapter, Manual, (1) 9V Battery

Standard:CE

Weight:1.2 lb (0.5 kg)
