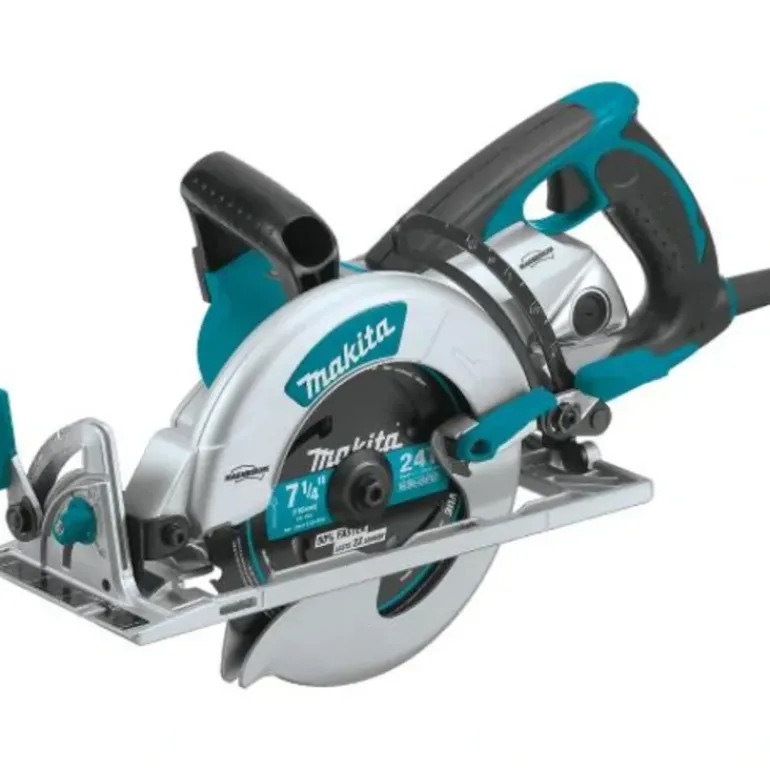

Makita 5377MG 7‘1/4& Magnesium Hypoid Saw – One-stop shop for professional tools and equipment.

Description

Product Description

Makita – 5377MG The Makita 7-1/4 Magnesium Hypoid Saw features highly durable magnesium components and a powerful 15 AMP Makita-built industrial motor with a hypoid gearing system for maximum power output. The 5377MG seamlessly balances weight, power, durability, and ease of use for optimum cutting performance.

Makita-Built Motor Engineered for Versatile Power

The 5377MG features a Makita-built 15 AMP industrial motor that delivers 4,500 RPM, combined with well-balanced magnesium components for a lighter weight saw that delivers true power the professional user demands. Users will benefit from the precision-machined hypoid gears, which deliver more constant power than worm drive gears. Hypoid gears have greater surface contact so more power is transferred over a wider surface, providing increased power and durability. In addition, hypoid gears are in an oil bath for consistent oil coverage. The saw has a large cutting capacity (2-3/8 at 90°) with a maximum bevel capacity of 51.5° and positive stops at 22.5°, 45° and 51.5° for quick back-and-forth changes.

Ergonomic and Ease-of-Use Features

Magnesium components allowed Makita to engineer a saw with less weight (13.2 lbs.) that is well-balanced and jobsite tough. Additional design details include greater clearance between the rear handle and the blade case to provide a better grip for larger hands or for users with gloves, as well as a wider space between the blade and housing for a clearer view of the blade and measurement scale. Makita also engineered ergonomics and ease-of-use into the saw, including clearly visible depth and bevel markings and ergonomic hand grips to improve overall control while minimizing operator fatigue. The large rubberized levers provide quick, one-handed adjustments for more efficient work.

Includes Ultra-Coated Framing Blade

The 5377MG includes a Makita 7-1/4 Premium Ultra-Coated Framing Blade with Advance Tooth Design. The “M” shaped tooth design features a two-pointed tip and two 10 degree bevel face to maximize cutting performance for a faster, cleaner and longer lasting cut. The carbide tips are specifically set to withstand the harshest conditions such as plowing through nail-embedded wood. The blade is also ultra-coated to reduce heat and pitch build-up for faster, smoother cutting, with special Makita heat vents strategically set to dissipate heat and increase performance. The 5377MG also include a blade wrench attached to the saw for fast and convenient blade changing.

Engineered for a Range of Applications

The 5377MG is built for framing walls, floors and roofs using a range of dimensional lumber and dense engineered lumber, including LVL, PSL and I-Joists, headers, and microlams; as well as ripping panels such as plywood, OSB, particle board, and dense structural panels. Other applications include plunge and bevel cutting.

Key Features:

• DURABILITY : Magnesium components create a saw with less weight (13.2 lbs.) that job site tough
• POWER : 15 AMP motor delivers enough power to cut through the densest lumber
• EFFICIENCY : Large cutting capacity (2-3/8 in. at 90º) with positive stops at 22.5º, 45º and 51.5º
• CONVENIENCE : Retractable hook allows tool to remain close-by but never in the way
• INCLUDES : Carbide Tipped blade and wrench

Features

• Magnesium components create a lightweight saw (13.2 lbs.) that is well balanced and job site tough
• Oil bath technology is created with a built-in fan and sealed gear housing to ensure 100% oil surface coating for less maintenance
• Large cutting capacity (2-3/8″ at 90°) with positive stops at 22.5°, 45° and 51.5°
• High quality, heat treated hypoid steel gears are engineered for less maintenance
• Powerful 15 AMP motor delivers 4,500 RPM with compressed winding technology to keep the overall size more compact yet deliver job site durability
• Better fit with comfortable rubber grip on handle
• Retractable hook allows tool to remain close by, but never in the way
• Make quick, one-handed adjustments using large, rubberized levers
• Settings are easy to read with oversized number and ruler markings
• Blade wrench is attached to saw for fast and convenient blade changing
• Reinforced 10 ft. power cord withstands jobsite abuse and lowers repair costs
• Includes a premium 7-1/4″ carbide tipped framing blade that cuts 50% faster and lasts 2x longer

Additional Information

ManufacturerMakita

No Load Speed4,500 RPM

AMPS15

Overall Length17-3/4″

Net Weight13.2 lbs.

Power TypeCorded

Shipping Weight17.35 lbs.

Blade Diameter7-1/4″

Max. Cutting Capacity (at 90°)2-3/8″

Arbor5/8″

Watts Out2,300

Max. Cutting Capacity (at 45°)1-3/4″

Max. Cutting Capacity (at 50°)1-9/16″
