Description

Product Description

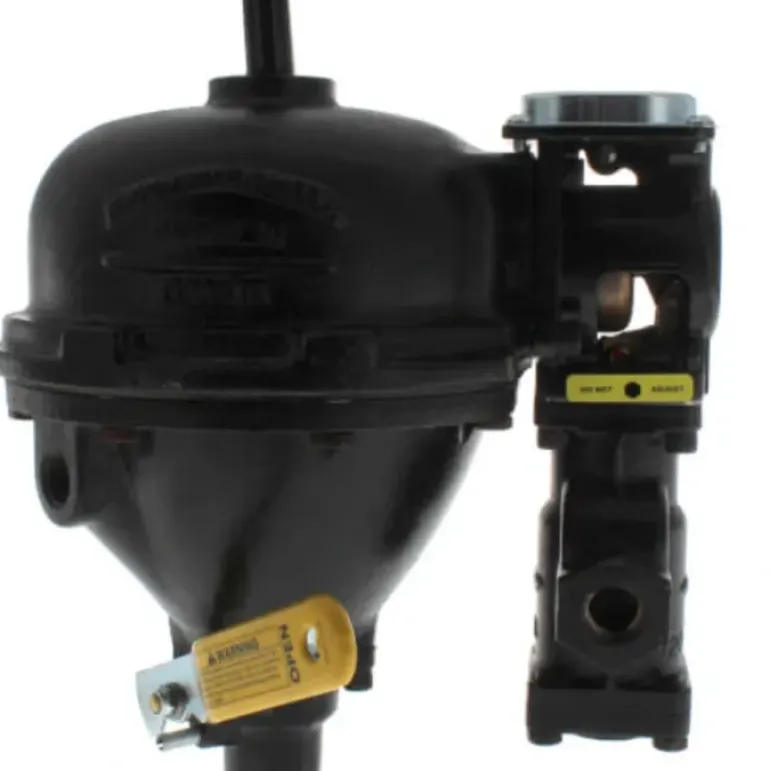

McDonnell & Miller – 132700 Series 47/47-2 Mechanical Water Feeders/Low Water Cut-Offs

Features

• For steam and hot water boilers with cold water feed
• Continuous maintenance of minimum safe water level, independent of electrical service
• Proportional feed action
• Quick hook-up fittings provided
• Quick-change replaceable cartridge valve and strainer
• Optional features – No. 2 switch – Manual reset
• Model 47 can be field upgraded with a No. 2 switch to add low water cut-off function
• Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
• Maximum inlet water temperature 120 degrees F (49 degrees C)
• Maximum boiler pressure 25 psi (1.8 kg/cm sq.)

Additional Information

ApplicationSteam BoilersHot Water Boilers

TypeFloat-Style

Max Pressure (PSI)150

Max Vessel Pressure25 psi

Reset TypeAutomatic

Max Inlet Water Temp (F)120°F

Width (Inches)11-7/8″

FeaturesQuick Hook-Up Fittings

Electrical Ratings (AFL)5.1 A @ 240 VAC10.2 A @ 120 VAC

Electrical Ratings (ALR)61.2 @ 120 Vac30.6 @ 240 VAC

Pilot Duty Rating125 VA

Size3/4″

Connection TypeThreaded
