Description

Product Description

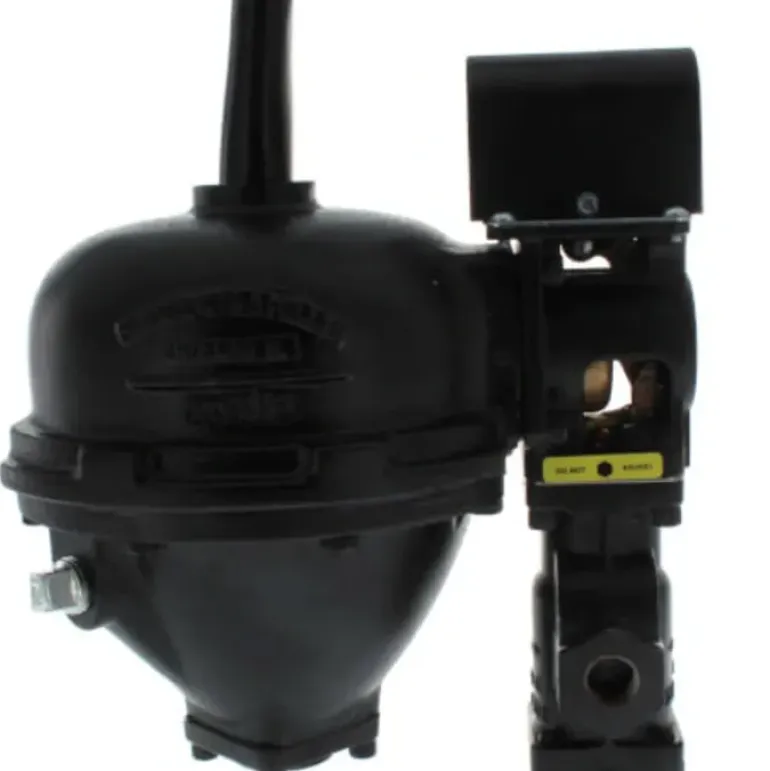

McDonnell & Miller – 133800 Series 247/247-2 Mechanical Water Feeders/Low Water Cut-Offs

Features

• For steam and hot water boilers with cold water feed
• Continuous maintenance of minimum safe water level, independent of electrical service
• Proportional feed action
• Quick-change replaceable cartridge valve and strainer
• Quiet, durable operation
• Isolated feed valve minimizes lime and scale build-up
• Optional features

v No. 2 switch v Manual reset

• Model 247 can be field upgraded with a No. 2 switch to add low water cut-off function
• Maximum water supply pressure 150 psi (10.5 kg/cm2)
• Maximum inlet water temperature 120 degrees F (49 C)
• Maximum vessel pressure 30 psi (2.1 kg/cm2)

Additional Information

ApplicationSteam BoilersHot Water Boilers

TypeFloat-Style

Max Pressure (PSI)150

Max Vessel Pressure30 psi

Reset TypeAutomatic

Max Inlet Water Temp (F)120°F

Height9.125″

Width (Inches)7-5/16″

Size1/2″

Connection TypeThreaded

Electrical Ratings (AFL)10.2 A @ 120 VAC5.1 A @ 240 VAC

Electrical Ratings (ALR)30.6 @ 240 VAC61.2 @ 120 Vac

Pilot Duty Rating125 VA

Switch#2
