Description

Product Description

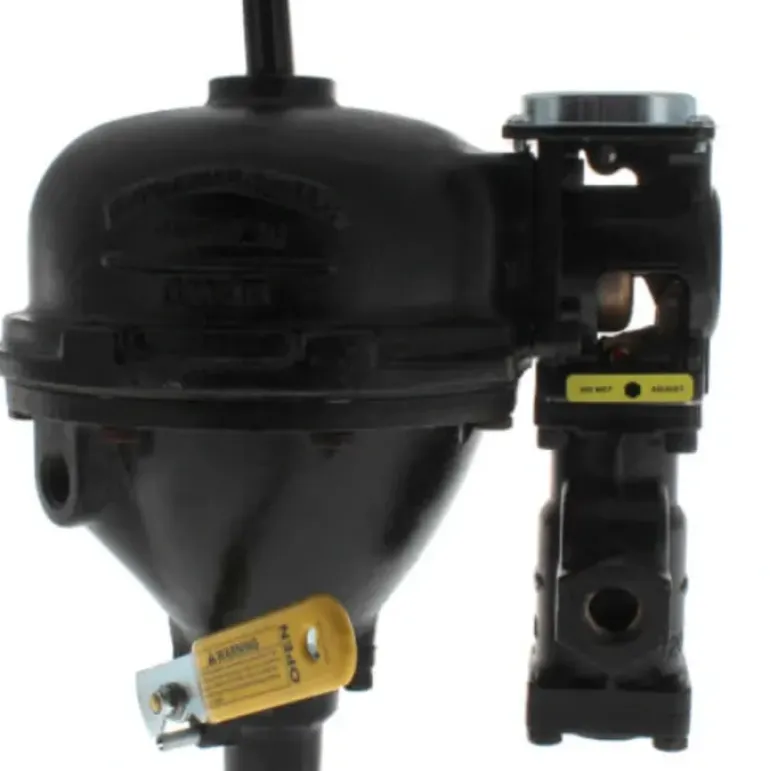

McDonnell & Miller – 134700 Series 51/51-2 Mechanical Water Feeders/Low Water Cut-Offs

Features

• For low pressure steam and hot water boilers larger than 5,000 sq. ft. (465m sq.) capacity with cold water feed
• Quick-change replaceable cartridge valve and strainer
• Optional features

– No. 2 switch – Manual reset – Float block

• Proportional feed action
• Model 51 can be field upgraded with a No. 2 switch to add low water cut-off function
• Maximum water supply pressure 150 psi (10.5 lg/cm sq.)
• Maximum inlet water temperature 120 degrees F (49 degrees C)
• Maximum vessel pressure 35 psi (2.5 kg/cm sq.)

Additional Information

ApplicationSteam BoilersHot Water Boilers

TypeFloat-Style

Max Pressure (PSI)150

Max Vessel Pressure35 psi

Reset TypeAutomatic

Max Inlet Water Temp (F)120°F

Width (Inches)9″

Height10.375″

Electrical Ratings (AFL)5.1 A @ 240 VAC10.2 A @ 120 VAC

Electrical Ratings (ALR)61.2 @ 120 Vac30.6 @ 240 VAC

Pilot Duty Rating125 VA

Size1″

Connection TypeThreaded
