Description

Product Description

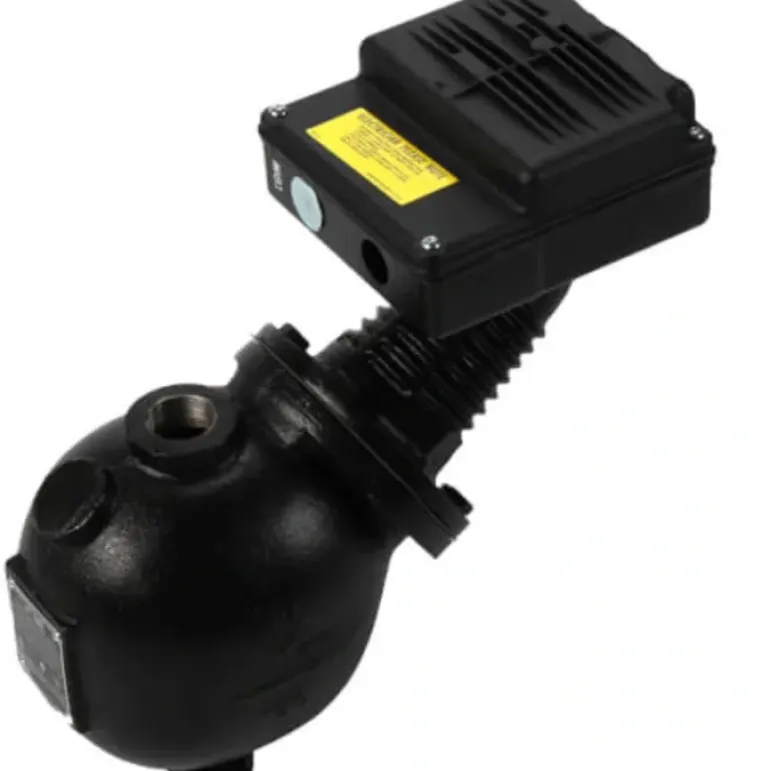

McDonnell & Miller – 165200 Series 94 Combination Low Water Cut-Off and Pump Controller for Steam Boilers

Features:

• For commercial and industrial low or high pressure steam boilers
• Maintains consistent water level regardless of pressure
• For boilers of any steaming capacity
• No. 5 Switch included
• Magnetic repulsion eliminates need for bellows
• Optional features – Manual reset
• 7B switch to maintain constant boiler water level (BSPT threads)
• 1-1/4″ NPT connections
• Maximum pressure 250 psi (17.6 kg/cm2)
• 10 bolt flange

Additional Information

ApplicationSteam Boilers

Switch#5

Max Pressure250 psi

TypeCombo

Reset TypeAutomatic

Depth (Inches)12-15/16″

Length18-13/16″

Width (Inches)7″

Thread Size1-1/4″

Connection TypeThreaded

Pilot Duty Rating345 VA
