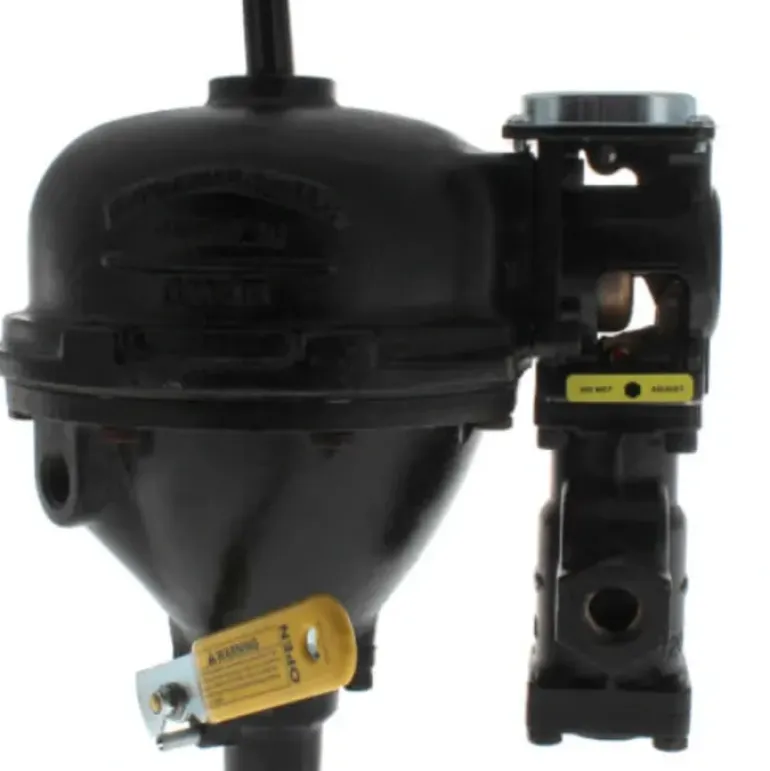

McDonnell & Miller – 169500 Series 101-A Electric Water Feeders

Features

• For low pressure steam boilers with cold water feed
• Eliminates necessity to manually add water to the boiler
• Can be used with mechanical or electronic low water cut-off controls
• Quick-change replaceable cartridge valve and strainer
• Manual feed button
• Model 101-A features a 120 VAC solenoid
• Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
• Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
• Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
• Maximum inlet water temperature 120 degrees F (49 degrees C)
• Maximum power consumption – 40 VA at 24 VAC – 40 VA at 120 VAC

Additional Information

ApplicationSteam Boilers

TypeElectronic

Max Pressure (PSI)150

Max Vessel Pressure25 psi

Voltage24v

Reset TypeAutomatic

Width (Inches)6-7/8″

Height7.5625″

Feed Rate1

Max Ambient Temp (°F)100°F

Max Inlet Water Temp (F)120°F

Max Power Consumption40 VA

Connection TypeThreaded

Size1/2″
