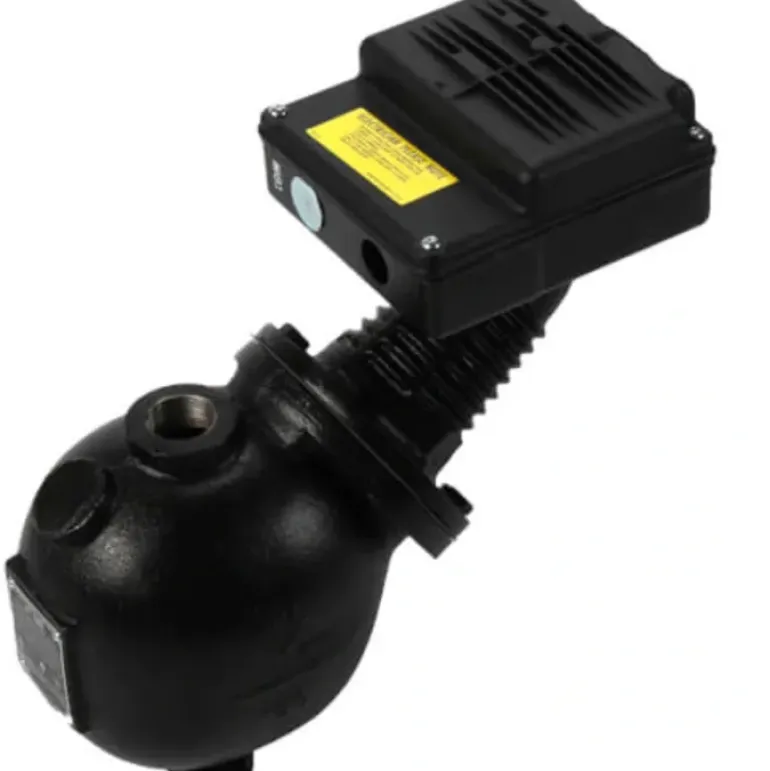

McDonnell 171702 Hi Pressure Level Control – One-stop shop for professional tools and equipment.

Description

Product Description

McDonnell & Miller – 171702

Features

• For commercial and industrial low or high pressure boiler applications
• For boilers of any steaming capacity
• Monel bellows provides corrosion resistance
• Snap action switches for high temperature service
• 1 Single pole, single throw switch for pump control
• 1 Single pole, double throw switch for low water cut-off and alarm actuation
• Optional features: Manual reset, 2 Single pole, single throw switches, 2 Single pole, double throw switches, Float block, BSPT threads
• Maximum pressure 150 psi (10.5 kg/cm2)

Additional Information

ApplicationSteam Boilers

SwitchSPDTSPST

Max Pressure150 psi

TypeFloat-StyleCombo

FeaturesSnap Switch

Reset TypeAutomatic

Thread Size1″

Connection TypeThreaded

Pilot Duty Rating345 VA

Electrical Ratings (ALR)44.4 A @ 120 Vac22.2 A @ 240 VAC

Electrical Ratings (AFL)7.4 A @ 120 Vac3.7 A @ 240 VAC
