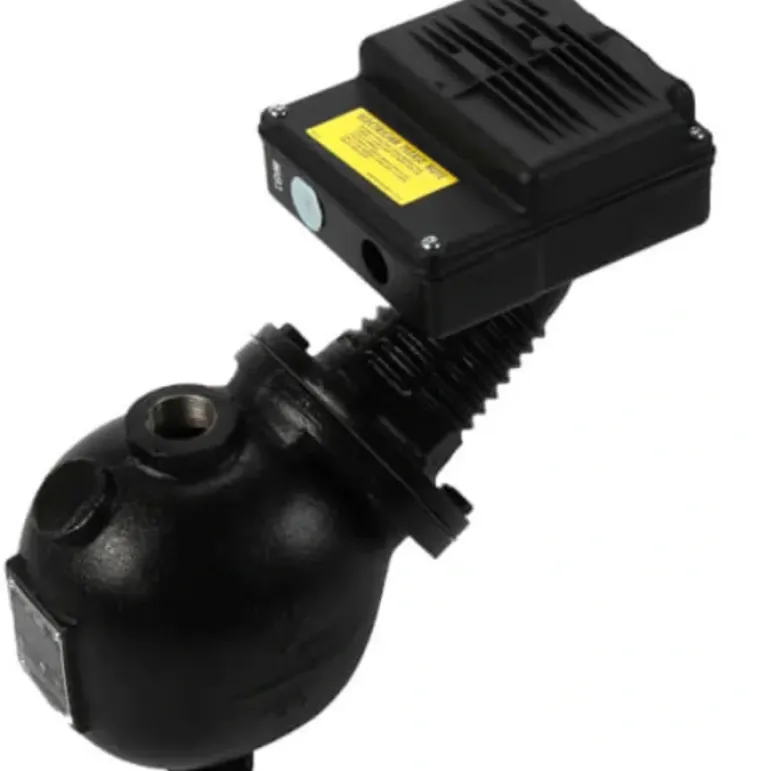

McDonnell 172813 Hi Pressure Level Control – One-stop shop for professional tools and equipment.

Description

Product Description

McDonnell & Miller – 172813 For residential, commercial and industrial low or high pressure boiler applications

Specifications

• For boilers of any steaming capacity
• Monel bellows provides corrosion resistance
• Float chamber with integral water column provided
• Snap action for high temperature service:1 Single pole, single throw switch for pump control, 1 Single pole, double throw switch for low water cut-off and alarm actuation
• Manual reset
• Maximum pressure 150 psi

Additional Information

ApplicationSteam Boilers

Reset TypeManual

Max Pressure (PSI)50

SwitchSPDTSPST

TypeComboFloat-Style

Featuresw/ Water Columnw/ Max Differential

Depth (Inches)13-3/8″

Length (Inches)16″

Width5-7/8″

Electrical Ratings (ALR)22.2 A @ 240 VAC44.4 A @ 120 VAC

Electrical Ratings (AFL)3.7 A @ 240 VAC7.4 A @ 120 VAC

Pilot Duty Rating345 VA

Connection TypeThreaded

Thread Size1″
