Description

Product Description

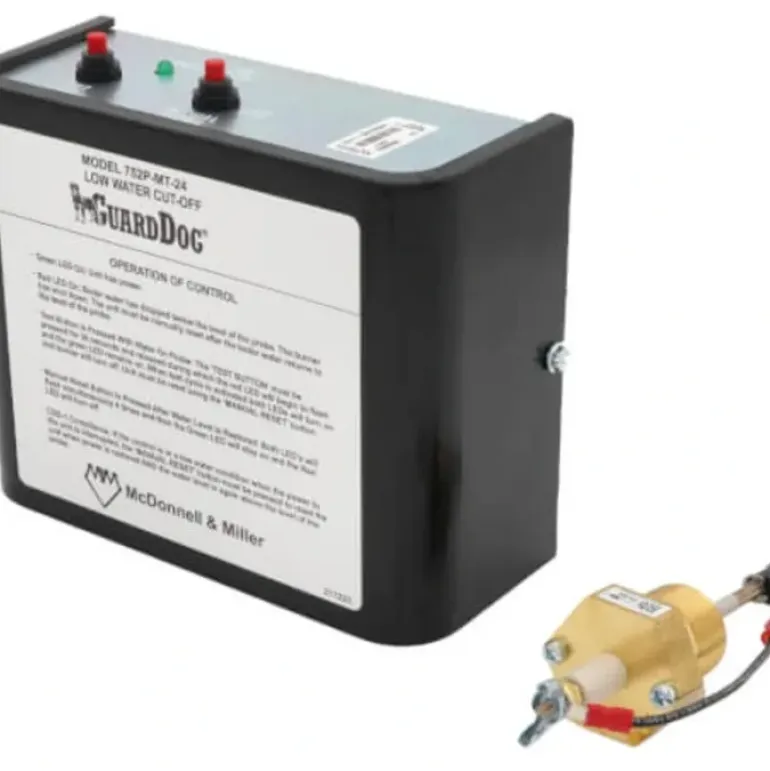

McDonnell & Miller – 176206

Features

For commercial or industrial applications

Primary or secondary control on hot water boilers

Secondary control (manual reset models only) on steam boilers

Manual reset models meet the requirements of ASME Standard CSD-1. If the control is in a low water condition when there is an interruption of power, the control will remain in a low water condition when power is restored. The reset button will need to be pressed when the water level is restored to a level above the probe to allow the burner to fire.

Standard Features:

• Green power in on indicating LED
• Red low water indicating LED
• Test button
• No lock out with loss of power if probe is in water
• 20,000 ohms sensitivity

Additional Information

ApplicationSteam BoilersHot Water Boilers

TypeElectronic

Reset TypeAutomatic

Voltage120v

Power Consumption3 VA

Sensitivity20000 ohms

Max Pressure (PSI)15

Probe Length2-1/8″

Max Temp (F)120°F
