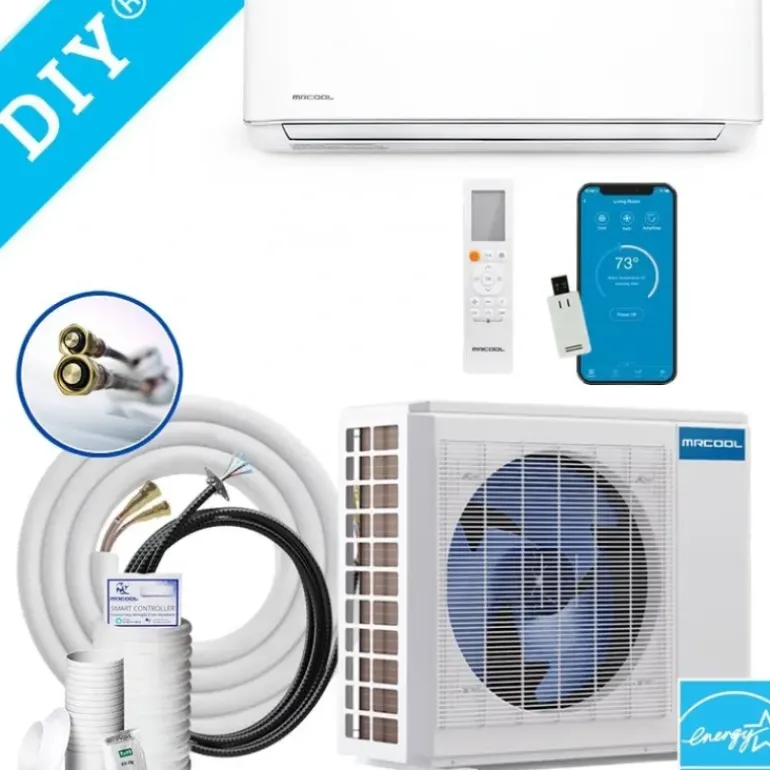

MRCOOL 12k BTU 22 SEER DIY Series Ductless Wall Mounted and Heat Pump Split System 4th Generation – One-stop shop for professional tools and equipment.
Original price was: $100.00.$66.89Current price is: $66.89.
Description
Product Description
MRCOOL – DIY-12-HP-C-115C25
The 4th Generation MrCool DIY 12K BTU 22 SEER Ductless Heat Pump Mini Split System is now backed by the best warranty in the industry! The new limited lifetime compressor warranty in addition to a 7-year unit replacement warranty and 5-year parts warranty are sure to lengthen the life of your ductless mini split system.This is the first ductless mini split to offer a limited lifetime compressor warranty in the entire market.
The 4th Generation MrCool DIY 12K BTU 22 SEER Ductless Heat Pump Mini Split System also includes the new DIYPRO Cable. The DIYPRO Cable eliminates the need for an electrical conduit when installing the unit. With easy crimp connectors and protection against weather, animals, and yard work tools, this cable gives higher mechanical protection and durability, giving a longer life to your heat pump mini split system.
Additional Information
Heat Pump Condensor Specifaction:
DIY-12-HP-C-115C25
Model DIY-12-HP-C-115C25
AHRI Number 207339187
UPC 810035933743
Avg Coverage Area 500 – 600 Sq Ft
Compressor Inverter
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF) 11.5
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 25 amps
Primary Heating Capacity 10,001 – 15,000 BTU
Product Height (in) 21.85
Product Length (in) 11.93
Product Width (in) 30.12
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Series DIY
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 120
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 65.7
Region Compatibility Nationwide
Additional Information
Wall Mount Air Handler Specification :
DIY-12-HP-WMAH-115C25
Model DIY-12-HP-WMAH-115C25
UPC 810063868499
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11.69
Product Length (in) 7.44
Product Width (in) 31.57
Refrigerant R-410a
Series DIY
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 120
Warranty 5 Year Parts
Weight (lbs) 34.17
