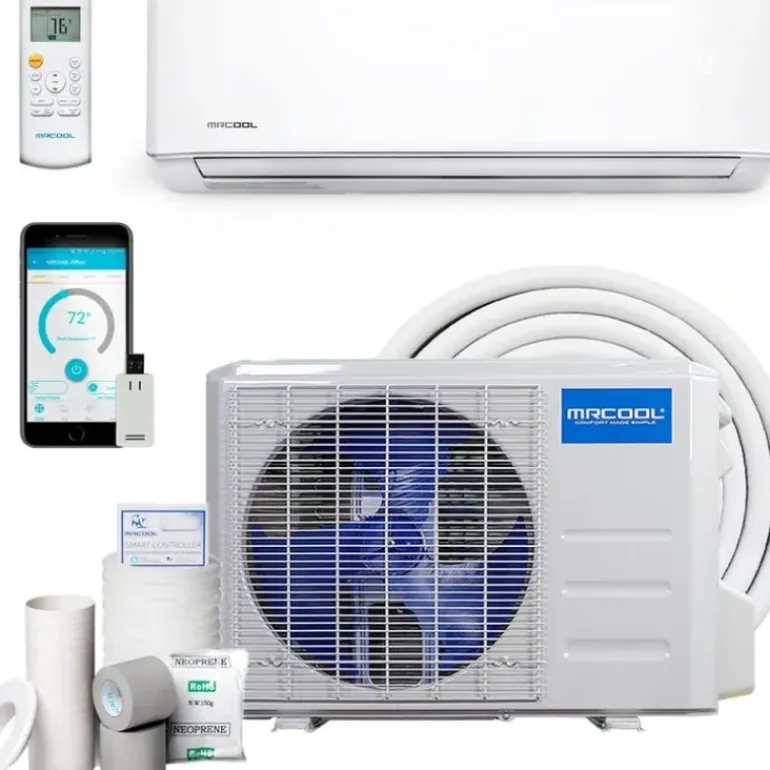

MRCOOl 9k BTU 19 SEER Advantage Ductless Heat Pump Split System 3rd Generation-115v – One-stop shop for professional tools and equipment.

Description

Product Description

MRCOOL – A-09-HP-C-115B

Mr Cool A-09-HP-115B 9K BTU Heat Pump Condenser Wall Mount Air handler 115 volt 19 SEER WiFi 16ft line set install kit.The newly designed 3rd generation Advantage Series, with improved efficiency ratings up to 19 SEER, delivers high performance comfort from the moment it’s activated. And its competitive price makes it a consumer favorite that’s tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.

• Installation kit included
• Gold fin condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
• The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices.
• Works with Amazon Alexa.
• Works with Google Assistant.
• Installation by a licensed professional required where applicable
• 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
• R-410A environmentally friendly refrigerant
• Sleep mode, louver position memory, and auto restart functions
• Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

Additional Information

ModelA-09-HP-C-115B , A-09-HP-WMAH-115B

SeriesAdvantage

AHRI Number205415980

Air Handler-UPC810035931541

Condensor-UPC810035931558

Cooling CapacityLess than 1 Ton

Air Handler-Air Flow DirectionHorizontal

Air Handler-ConfigurationWall Mounted

Air Handler-Blower MotorVariable Speed

Air Handler-Electrical Phase1-Phase

Line Set Connection TypeFlared

Max Overcurrent Protection20 amps

Suction Line Size3/8 inch

Liquid Line Size1/4 inch

System Application TypeDuctless Split Systems

Air Handler-Height (in)11.42

Air Handler-Length (in)7.36

Air Handler-Width (in)28.43

Air Handler-Weight (lbs)22.7

Condensor-Height (in)14.96 in

Condensor-Length (in)17.71 in

Condensor-Width (in)52.76 in

Condensor-Weight (lbs)55.3 Lbs

Air Handler-Voltage120

Air Handler-Warranty2 Year Parts

Condensor-Avg Coverage AreaLess than 500 Sq Ft

Condensor-CompressorInverter

Condensor-Electrical Phase1-Phase

Condensor-Heat Pump Efficiency (HSPF)10 HSPF

Condensor-Primary Heating Capacity5,000 – 10,000 BTU

Condensor-RefrigerantR-410a

Condensor-Cooling Efficiency19 SEER and Above
