Description

Product Description

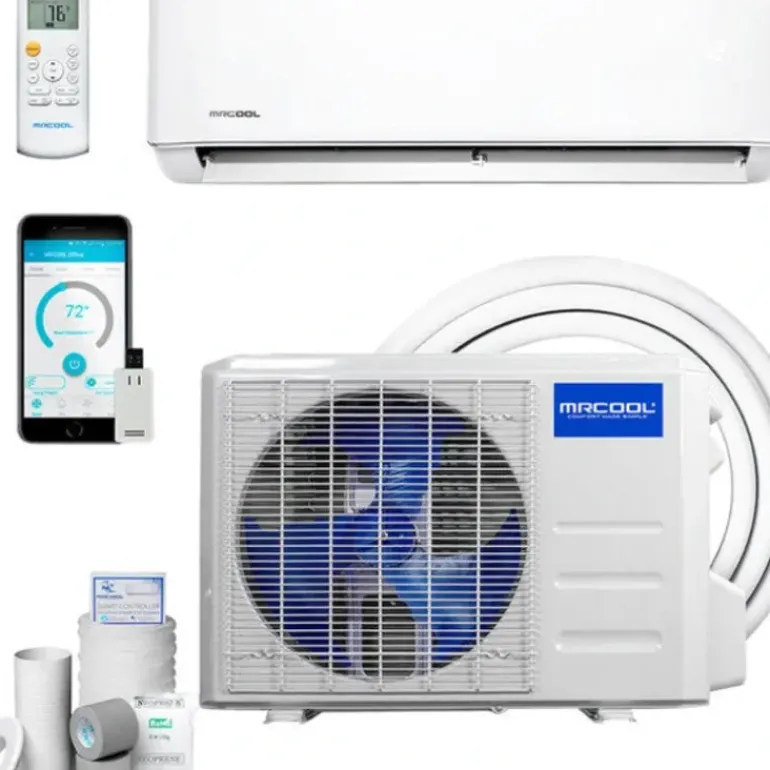

MRCOOL – A-09-HP-230B

Advantage 3rd Gen 9,000 BTU 3/4 Ton Ductless Mini Split Air Conditioner and Heat Pump – 230V/60Hz

This system is meant to be installed by a HVAC technician. The newly designed 3rd generation Advantage Series, with improved efficiency ratings up to 18 SEER, delivers high performance comfort from the moment it’s activated. And its competitive price makes it a consumer favorite that’s tough to beat. The MRCOOL Advantage condenser and wall mounted air handler is an ideal combination of superior product quality, energy efficiency, quiet operation, and financial value. The condenser incorporates a high performance compressor with eco-friendly, chlorine-free R-410A refrigerant. The MRCOOL Advantage is the clear choice for consumers who want to combine superior interior comfort with environmentally friendly technology. The MRCOOL Advantage now includes the new SmartHVAC WiFi control module that features an easier setup process, improved functionality, and works with Amazon Alexa and Google Assistant.

Features:

• Installation kit included
• Gold Fin ® condenser: corrosion resistant – live on the coast? Don’t worry, our condenser is built to resist long term corrosion
• The new 3rd generation Advantage systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
• Installation by a licensed professional required where applicable
• 1-Year Compressor, 2-Year Parts and 1-Year Remote Warranty when registered and when installed by a licensed professional
• R-410A environmentally friendly refrigerant
• Sleep mode, louver position memory, and auto restart functions
• Convenient for installation and maintenance, compact design of outdoor unit, totally enclosed, permanently lubricated condenser fan motor

Additional Information

Series_Extadv_b

Unit_TypeMini-Split

Net_Depth19.17

Net_Height33.27

Net_Width58.74

Net_Weight83.8

Condenser_Depth11.81

Condenser_Height21.85

Condenser_Width30.31

Condenser_Weight66.8

Air_Handler_Depth7.36

Air_Handler_Height11.42

Air_Handler_Width28.43

Air_Handler_Weight17

Freight_Class300

Seer18

Eer11

Hspf9.5

Cfm309/285/187

Tonnage 3/4

Cooling_Capacity9000 BTU

Heating_Capacity9800 BTU

Voltage208-230 V

Phase1

Cycle60 Hz

Max_Fuse_Breaker15 A

Min_Circuit_Ampacity10A

Mount_TypeWall

ColorWhite

Color_FamilyWhite

Max_Coverage_Area375 sq ft

Zone_Capacity1

Refrigerant_TypeR-410A

Refrigerant_Volume28.2 oz

Decibel_Rating23/-/36 dBA

Decibel_Rating_Low23 dBA

Decibel_Rating_High36 dBA

Air_Flow_Direction4-way

Number_Of_Speeds4 (Variable)

OscillationYes

InverterYes

Min_Ambient_Heat5 Degrees F

Line_Set_Length16 Ft

Liquid_Line_Fitting3/8 in

Liquid_Line_Size1/4 in

Suction_Line_Fitting1/2 in

Suction_Line_Size3/8 in

Control_TypeLED

Filter_TypeWashable

Auxiliary_Heater_IncludedNo

Auxiliary_Heater_AvailableNo

Low_Voltage_CompensationNo

Overload_ProtectionYes

Adjustable_ThermostatYes

Fan_Only_OptionYes

Quiet_ModeYes

Sleep_ModeNo

Auto_CoolYes

Wifi_CompatibilityYes

App_CompatibilityYes

Works_With_IosYes

Works_With_AndroidYes

Remote_Control_IncludedYes

Ul_ListedYes

Csa_ListedYes

Etl_ListedYes

Energy_Star_CompliantNo

Energy_Star_CertifiedNo

Ahri_CertifiedYes

Registered_Warranty1-Year Compressor, 2-Year Parts and 1-Year Remote

Base_WarrantyNone

Registered_Parts_Warranty2-year

Base_Parts_WarrantyNone

Registered_Compressor_Warranty1-year

Base_Compressor_WarrantyNone

Registered_Remote_Warranty1-year

Base_Remote_WarrantyNone

Registered_Labor_WarrantyNone

Base_Labor_WarrantyNone

Has_BatteriesYes

Contains_ElectronicsYes

Contains_ChemicalsYes

Contains_AerosolYes

Contains_Compressed_GasYes

Proposition_65_WarningNo

Restricted_StatesGU, PR, VI
