MRCOOl CASSETTE18HP-230 18K BTU Heat Pump Ceiling Cassette Air Handler – One-stop shop for professional tools and equipment.

Description

Product Description

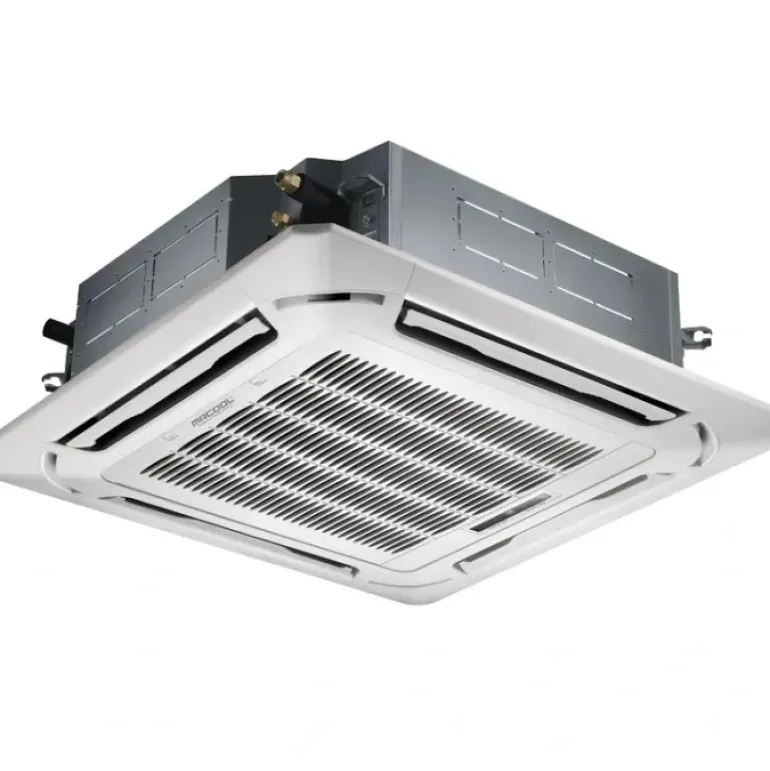

MRCOOL – CASSETTE18HP-230

MRCOOL’s cassette air handler provides up to 18000 BTU, efficiently heating and cooling your home alongside the Olympus heat pump condenser.The Mrcool Olympus is The whole house mini-split solution.This 1.5 ton 18,000 BTU ceiling cassette air handler can be matched with any Olympus condenser to condition rooms that are approximately 750 sqft.

• Downflow air direction.
• Variable speed.
• 1.5 ton cooling capacity.
• Flared line set connection.
• 5 year parts warranty.
• Power supply: 208-230 volts/60 Hz, 1-Phase.
• Minimum circuit: 1.9 amps; maximum fuse: 15 amps.
• Piping size liquidside/gasside: 1/4-in to 1/2 inch.
• Energy Star, ETL Listed, AHRI Certified.

Additional Information

Dimensions 22.44 in L x 22.44 in W x 10.24 in H

CertificateEnergy Star, ETL Listed, Prop65

ConfigurationCassette

Cooling Capacity18000 BTU/H

Electrical Phase1 Ph

Fan SpeedsVariable Speed

Heating Capacity18000 BTU/H

Inner Package1

Maximum Amperage15 Amp

Maximum Voltage230V

Power Supply230/208V, 1Ph, 60Hz

Refrigerant Pipe Connection MethodFlare

Suction Line44958

Warranty5 Yr

Weight46.30 lb
