Description

Product Description

MRCOOL – DIY35-1412C

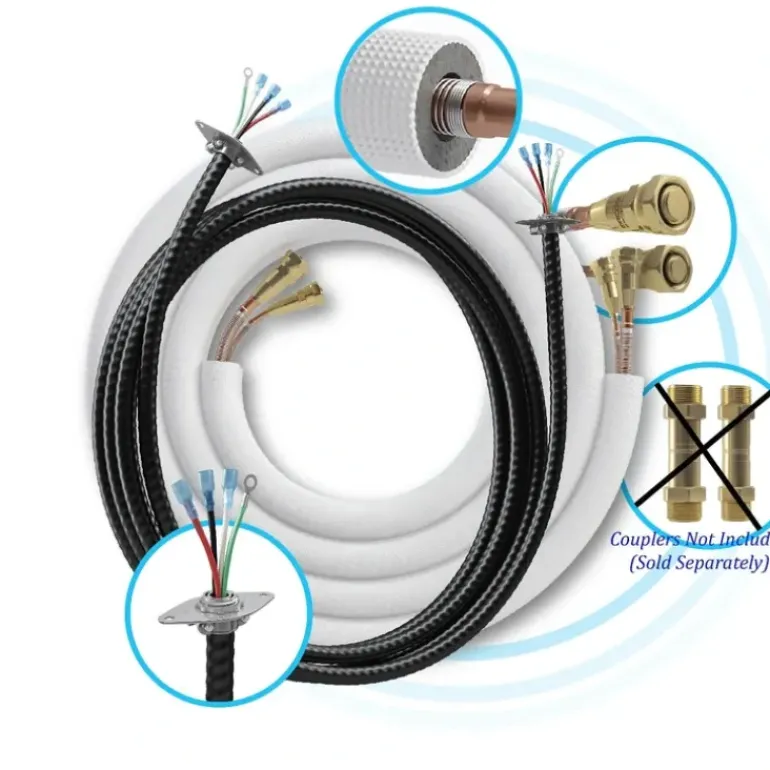

The MRCOOL DIY Quick Connect 35 ft. 1/4 x 1/2 Line Set is 100% accurately pre-charged with R-410A refrigerant. This makes installation quick and easy with no vacuuming required. This lineset includes 35 ft. of communication wire.It can be used with the DIY Multi-Zone 4th Gen Systems in conjunction with the 9,000, 12,000 and 18,000 BYU Indoor Units. It can also be used to extend the line set length included with the 12,000 and 18,000 BTU DIY Single Zone Systems. The line set is encased in a strong, 3/4″ UV Protective Insulation Sleeve. It will prevent sun damage, weather erosion and destruction from wildlife. The No-Vac Line Set is kink resistant and easy to bend during installation.This 35 ft. copper line set connects the 4th Generation MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. This lineset is only compatible with the 9K, 12K and 18K Air Handlers.This 35 ft. copper line set connects the MRCOOL DIY Condenser to the MR COOL DIY Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.

• Length: 35-ft.
• 1/4 x 1/2.
• For 9K, 12K and 18K DIY Series.
• Kink resistant.
• Leak proof.
• No vacuum needed.
• Easy to install.
• Pre-charged with R-410A refrigerant.
• Liquid Line Size: 1/4.
• Suction Line Size: 1/2.

Additional Information

ModelDIY35-1412C

UPC840255509855

Liquid Line Size1/4 inch

Suction Line Size1/2 inch

System Application TypeDuctless Split Systems

Weight (lbs)28 lbs

Length35ft

Product_Height (in.)35 In

Product_Depth (in.)35 In

Product_Width (in.)5 in

Color FamilyBronze/copper metallic
