MRCOOL MAC16042A 3.5 Ton Split System A/C Condenser (MAC16042A) – One-stop shop for professional tools and equipment.

Description

Product Description

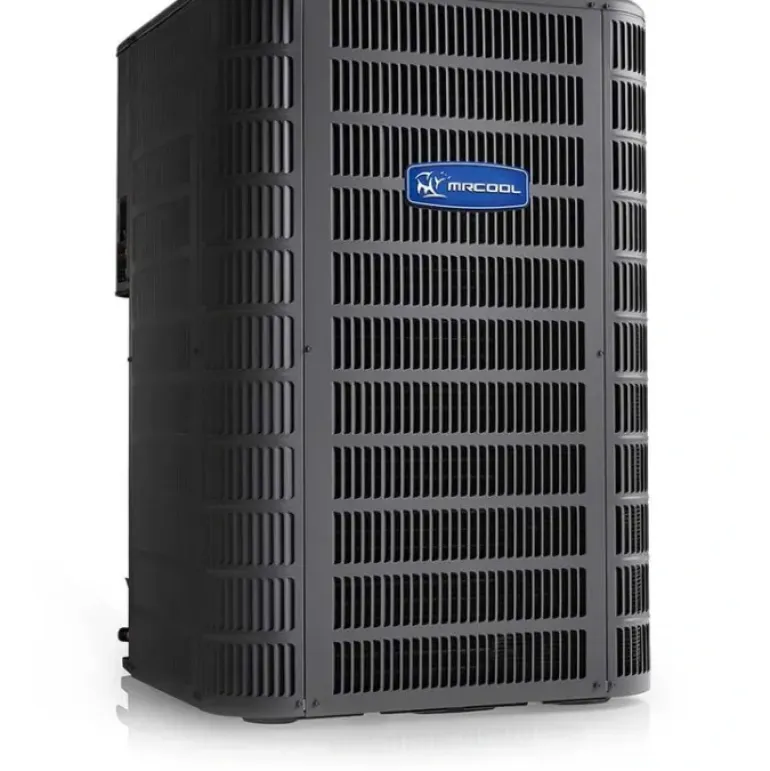

MRCOOL – MAC16042A 3.5 Ton up to 16 SEER Split System A/C Condenser

Do you need cooling relief right away? How about a decreasing utility bill? Thanks to MRCOOL, you can have all these things and more with our Split System A/C Condensers. This is a brand new 3.5 ton, 208-230 volt, R410-A refrigerant, MRCOOL outdoor condenser. This condenser (when paired with other MRCOOL products) has a seasonal energy efficiency rating of up to 16 SEER, providing maximum comfort cooling. Thanks to its high energy efficiency, you will see your utility bill decline year after year. This unit only provides “cooling” (this is NOT a heat pump).

Features:

• CoolGuard total corrosion protection technology designed coil
• Corner-mounted controls for easy service
• Full metal louvered construction to protect the coil/ hail protection
• Factory installed high pressure switch
• Thread-on pressure switches for simple, quick replacement
• 10 year limited warranty on compressor
• Charged for 15 feet of line set
• Fan orifice for smoother airflow and sound level reduction
• Lanced fins for maximum heat transfer
• Every coil factory tested for leak proof construction
• All units ETL and ETLC approved and AHRI Certified

Additional Information

Series_Extmac16

Unit_TypeSplit System AC Condensers

Net_Depth37

Net_Height28.25

Net_Width28.25

Net_Weight211

Seerup to 16

Max_Seer16

Eer12.2

Cfm1340-1460

Tonnage3.5

Cooling_Capacity40000-41000

Voltage208/230

Phase1

Cycle60

StageSingle

Max_Fuse_Breaker40 A

Min_Circuit_Ampacity23.4

ColorGray

Color_FamilyGray

Rated_Load17.9

Max_Coverage_Area1750

Refrigerant_TypeR-410A

Refrigerant_Volume140

Decibel_Rating76

InverterNo

Min_Ambient_Heat(-20F)

Lineset_IncludedNo

Line_Set_Length15FT, 25FT, 35FT, 50FT

Max_Lineset_Length50FT

Lineset_Fitting_TypeSweat

Liquid_Line_Size3/8 in

Suction_Line_Size 7/8

Compressor_Motor_TypeScroll

Condenser_Fan_Motor_TypeDirect Drive

Condenser_Fan_Motor_Hp 1/6

Condenser_Fan_Motor_Rpm825

Metering_DeviceTXV

Auxiliary_Heater_IncludedNo

Auxiliary_Heater_AvailableYes

Auxiliary_Heater_Sizes7.5kw, 10kw, 15kw

Ul_ReconizedNo

Ul_ListedNo

Etl_Listedyes

Etl_Certifiedno

Leed_Certifiedno

Energy_Star_Compliantno

Energy_Star_Certifiedno

Ahri_Certifiedyes

Registered_Warranty10 year registered parts warranty

Base_WarrantyStandard 5 year limited parts warranty

Registered_Parts_WarrantyRegistered 10 Year Parts Warranty

Base_Parts_Warranty5 Year Parts Warranty

Has_BatteriesNo

Contains_ElectronicsYes

Contains_ChemicalsYes

Contains_AerosolYes

Contains_Compressed_GasYes

Proposition_65_WarningYes

Restricted_StatesNo
