Description

Product Description

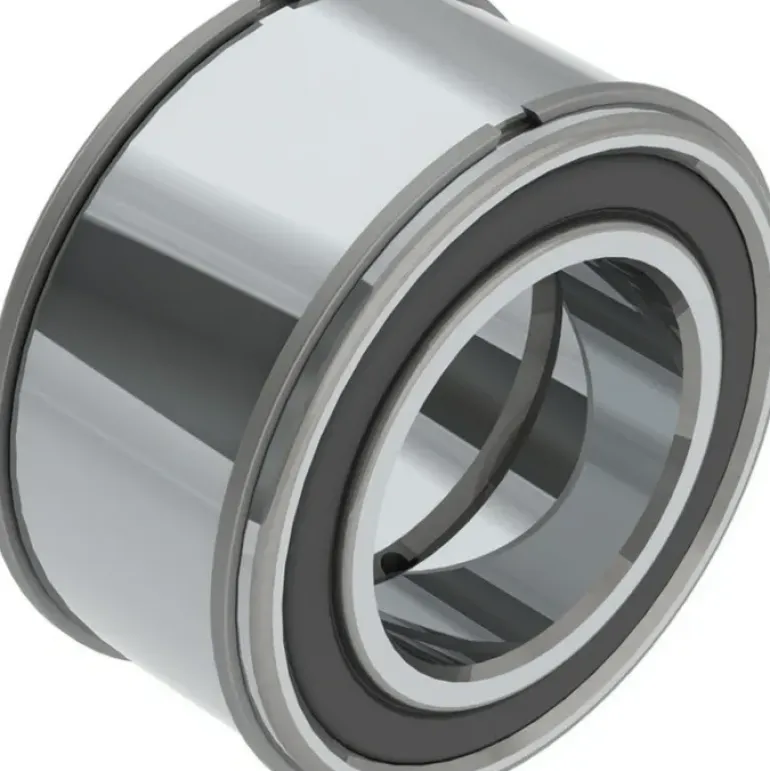

Nachi America – E5010XNNTS1 This bearing type is designed as a double row, full complement Cylindrical Roller bearing with ribs on both inner and outer rings. These bearings will sustain heavy radial load, and will handle moment load and will also take some axial load. Sheave bearings are suitable for a wide variety of uses in addition to sheaves. They are used for hoisting drum and wheel applications, and other applications which operate under heavy load at low speed.

Features

Easy to locate axially by using snap rings on both sides of the outer ring. Center groove and holes on the inner ring allow for easy relubrication.

Additional Information

Limiting Speed – Grease 2000 rpm

Rows of Balls Double

Static Load Rating 158000 N

Rolling Element Material Steel

Outer Ring Material Steel

Dynamic Load Rating 99500 N

Radial Internal Clearance CN/C0

Seals or Shields 2 NBR Contact Seals

Snap Ring With Snap Ring

Temperature Range [Max] 248 °F

Bore Type Cylindrical Bore

Grease Fill Mobilux EP2

Cage Material Steel

Inner Ring Material Steel

ISO Precision Class P0

EAN or UPC 4991893330632
