Nachi America E5020XNNTS1 Double Row Cylindrical Roller Sheave Bearing – One-stop shop for professional tools and equipment.

Description

Product Description

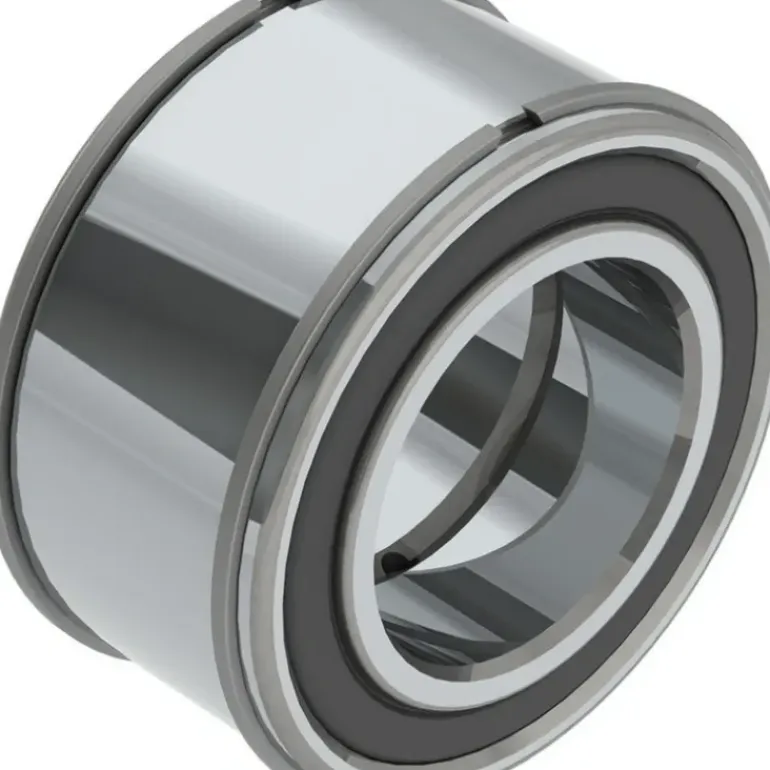

Nachi America – E5020XNNTS1 This bearing type is designed as a double row, full complement Cylindrical Roller bearing with ribs on both inner and outer rings. These bearings will sustain heavy radial load, and will handle moment load and will also take some axial load. Sheave bearings are suitable for a wide variety of uses in addition to sheaves. They are used for hoisting drum and wheel applications, and other applications which operate under heavy load at low speed.

Features

Easy to locate axially by using snap rings on both sides of the outer ring. Center groove and holes on the inner ring allow for easy relubrication.

Additional Information

ISO Precision Class P0

Snap Ring With Snap Ring

Bore Type Cylindrical Bore

Outer Ring Material Steel

Rolling Element Material Steel

Dynamic Load Rating 315000 N

Radial Internal Clearance CN/C0

Limiting Speed – Grease 1000 rpm

Cage Material Steel

Static Load Rating 585000 N

Temperature Range [Max] 248 °F

Rows of Balls Double

Inner Ring Material Steel

Grease Fill Mobilux EP2

Seals or Shields 2 NBR Contact Seals

EAN or UPC 4991893332001
