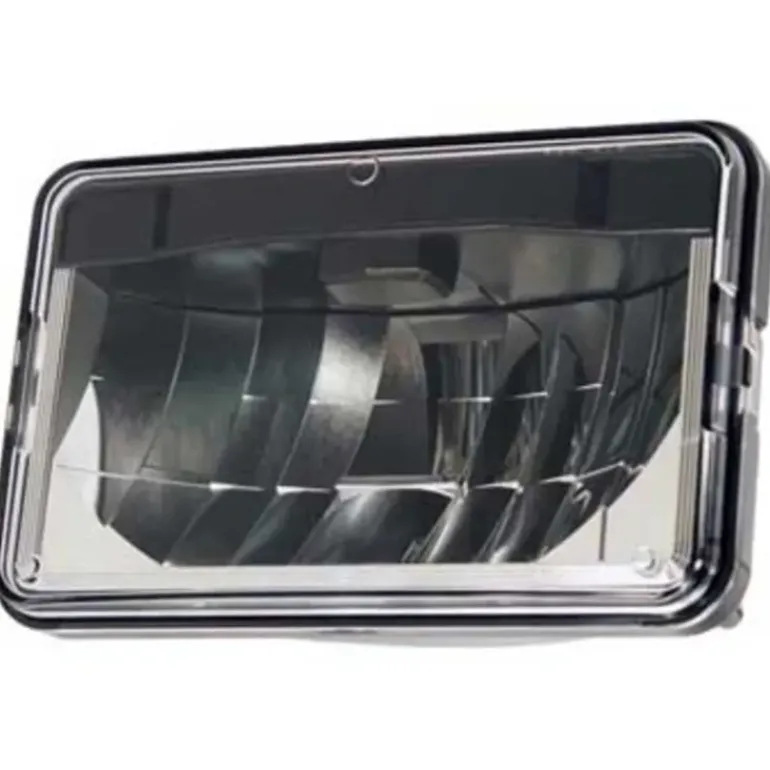

Peterson 702C Led Headlight, Rectangular, Low-Beam, 4″X6″, White, Box – One-stop shop for professional tools and equipment.

Description

Product Description

Peterson – 702C

Features

• LED.
• UV impact resistant, hard-coated polycarbonate lens.
• Vacuum metallized reflector.
• 800 (702C) 1000 (703C) source lumens.
• Low power draw: 10.25 watts (702C) 17 watts (703C).
• DOT-legal; exceeds FMVSS-108 and CMVSS-108 requirements.
• 5200k ?6000k (702C) 5200k ?6300k (703C) color temperature.
• 3.5”, 18 gauge, hardwired leads terminated w/ standard H4 terminals.
• IP66 ingress rating.
• Physical and electrical compatibility does not guarantee legal compliance in OE or retrofit applications. Refer to vehicle manufacturer, government standards, and SAE documentation regarding requirements and aiming requirements.
• 702C low-beam function headlight is designed only for use in integrated 4-lamp system. It is not designed or sold as a dual function (high/low beam) replacement headlight. Federal law requires horizontal adjustment be disabled for 702C.
• Hardwired design.
• Multivolt version available.
• Voltage Regulated.
• 702C is an SAE Type 2A1 low beam w/ 4-diode, single-chip assembly.
• 703C is an SAE Type 1A1 high beam w/ 6 diodes.
• Greater vibration shock resistance for longest available service life.
• Multivolt design is compatible with both 12V and 24V systems.
• Heavy-duty polycarbonate/cast alloy housing.

Additional Information

Bulb Technology Led

Bulb/Diode Count 1

California Proposition 65 Warning: Cancer And/Or Reproductive Harm – Www.P65Warnings.Ca.Gov

Color Temperature 5200 – 6000K

Container Type Box

Family Pm

Height 4.17 Inch

Length 6.5 Inch

Lens Color Clear

Light Color White

Maximum Voltage 32 Volts

Minimum Voltage 9 Volts

Multi-Volt Y

Regulatory Compliance Dot

Shape Rectangular

Termination H4

Voltage 12V / 24V

Width 3.5 Inch
