Rectorseal 66320 Metacaulk Composite Sheet – One-stop shop for professional tools and equipment.

Description

Product Description

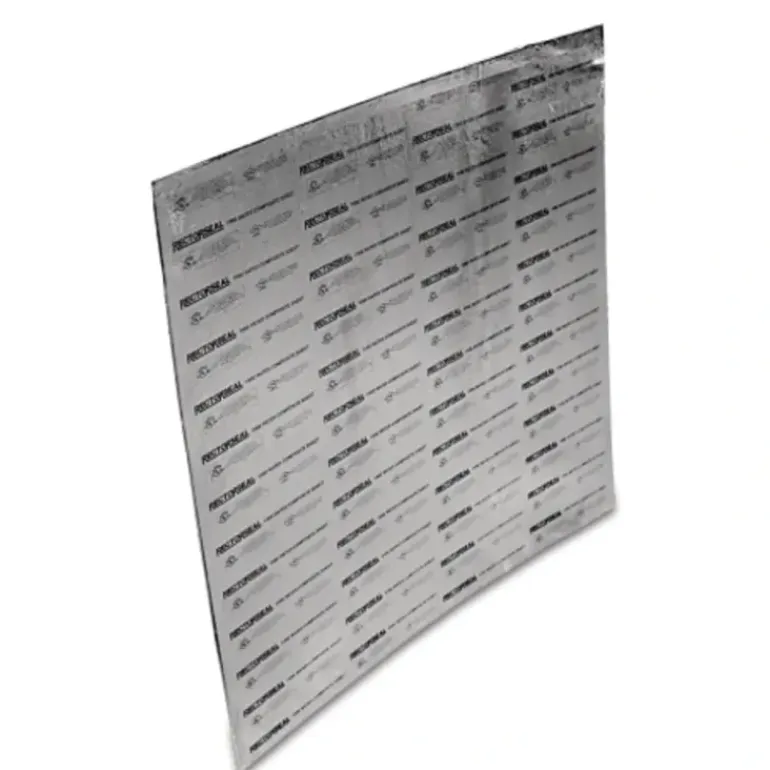

Rectorseal – 66320 Metacaulk Composite Sheet is hard fire-resistive panel for sealing penetrations/restoring fire rating to floors/ceilings/walls with penetrating openings. Intumescent material bonded to steel sheet that chars/slows heat transfer when exposed to fire.

Features

• Intumesces (expands with heat) to form a refractory char that tightly seals penetrations against flame spread, smoke and toxic fumes. UL Classified. Provides up to a 3 hour fire rating
• Lightweight, thin sheets are easy to handle, cut and form to desired or irregular shape
• Easy to install using common trade tools- fasten, bolt punch or drill through using self-tapping screws or anchor bolts. No mixing or damming for clean install. Cost effective- high performance vs. installed cost and is Re-enterable
• Non-flame supporting and Thermally conductive: allows unwanted heat build-up to escape.
• No VOC’s and Normal disposal procedures.

Additional Information

Case Weight (lbs) 15.00

Case Height (inch) 1.75

Case Length (inch) 37.50

Case Width (inch) 37.00

Brand Metacaulk

Recommended Use Sealing penetrations in fire-rated walls/floors conduit, panels, valves, heat-delicate process equipment, cable trays, piping blanks from radiant heat/flame spread/smoke. Not for constantly immersed/wet areas hot uninsulated surface above 300F

UPC 021449663205

Interleaved 10021449663202

Color SILVER

Application Provides smoke seal in concrete block/slab gypsum wall openings for 4 hours- UL Classified. Shields cable dropouts/junction boxes/cabinets intermediately firestops horizontal/vertical cable tray runs. Ideal for clean rooms new/retrofit jobs

Fin/Blade Spacing .000

Fin Degree 0

Screw Holes 0
