Rectorseal 83812 Aspen Mini Aqua 230V Silent Plus – One-stop shop for professional tools and equipment.

Description

Product Description

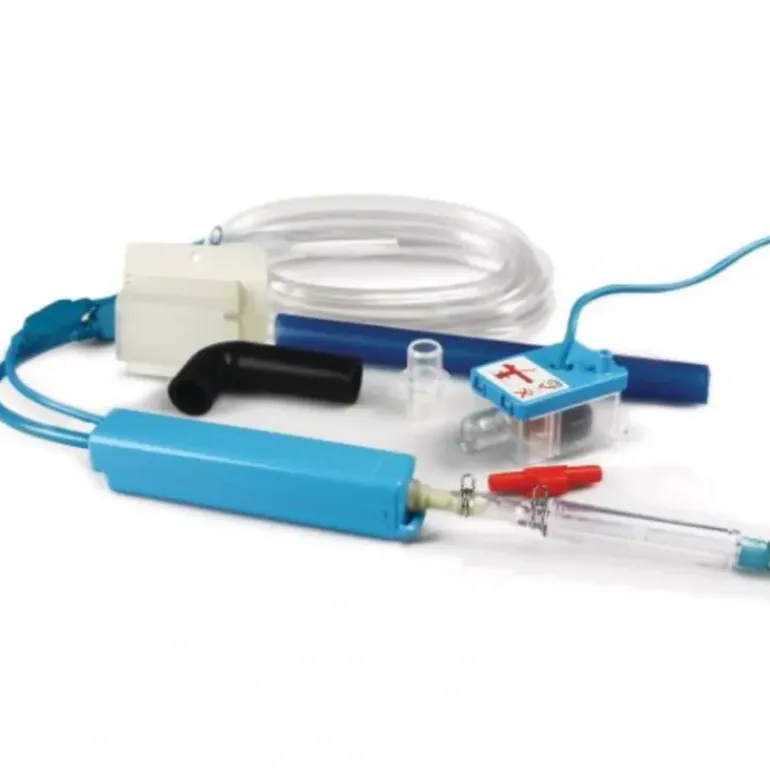

Rectorseal – 83812 Mini Aqua Pumps are designed with separate pump and reservoir. The 2 elements are connected together with a length of 1/4″ id vinyl tube and a communication cable, both of which are usually around 6 feet long.

Features

• Ultra-slim profile and Integral hanging loop and separate reservoir facilitates attachment in vertical applications
• Self Priming
• Modular terminals for fast connection
• Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
• 3A NO/NC dry contacts rated @ 5A inductive at 230V AC

Additional Information

Case Weight (lbs) 1.15

Case Height (inch) 2.40

Case Length (inch) 7.00

Case Width (inch) 14.40

Brand Aspen

Recommended Use Designed for use with ductless mini-split A/C systems to remove condensed water from evaporative coil condensate tray through drain line provided with equipment.

UPC 021449838122

Interleaved 10021449838020

Color AQUA BLUE

Application Pump mounts outside the evaporator hidden inside horizontal lineset cover. Reservoir mounts inside of evaporator, below the drain pan. Both pump and reservoir can also mount inside of evaporator, below the drain pan.

Fin/Blade Spacing .000

Fin Degree 0

Screw Holes 0

Pump Air Handler Ceiling, Wall Mounted

BTU Capacity Under 2.5 ton

Pump Location Internal, Remote
