Rectorseal 83912 Aspen Mini Orange 230V Silent Plus – One-stop shop for professional tools and equipment.

Description

Product Description

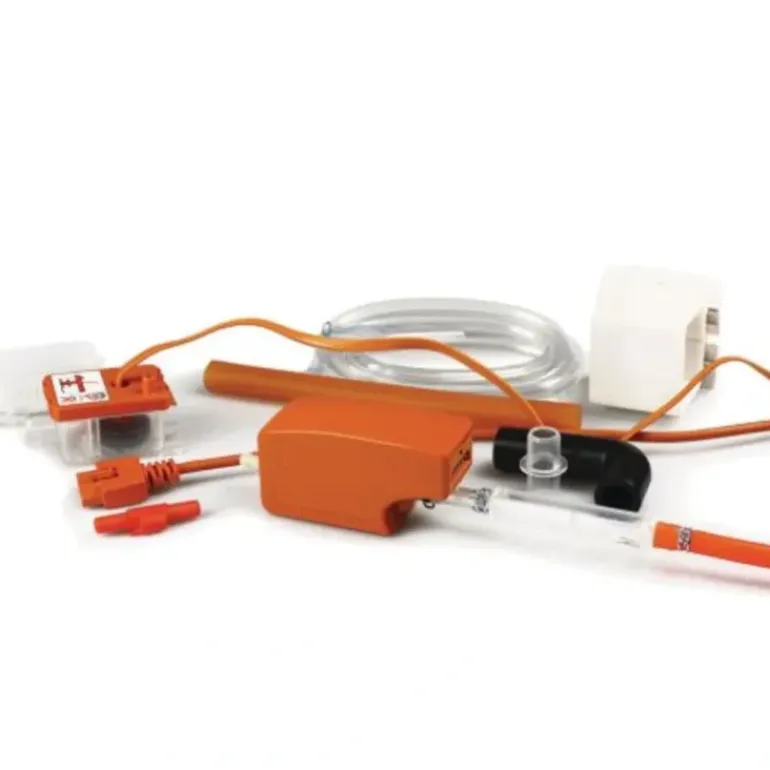

Rectorseal – 83912 Mini Orange pumps are designed with a separate pump and reservoir. The 2 elements connect together with a length of 1/4″ id vinyl tube and a communication cable, which are both usually around 6 ft. long. This may be extended if required.

Features

• Self Priming and Pump installs remotely above ceiling or inside lineset cover
• Pan mount and inline style reservoir included and Modular terminals for fast connection
• Gravity Inlet
• Quiet and Fully potted (complete assembly is epoxy filled for resistance to shock, vibration, moisture, chemical and promotes sound dampening, US Patent #6,817,194)
• 3A N/C dry contacts rated @ 5A inductive @ 230V AC

Additional Information

Case Weight (lbs) 2.00

Case Height (inch) 2.50

Case Length (inch) 7.00

Case Width (inch) 14.00

Brand Aspen

Recommended Use Designed for use with ductless mini-split A/C systems to remove condensed water from evaporative coil condensate tray through drain line provided with equipment.

UPC 021449839129

Interleaved 10021449839041

Color ORANGE

Application Pump mounts outside evaporator, hidden in the horizontal lineset cover. Reservoir mounts in evaporator, below drain pan. Designed for installation above a false ceiling where possible, or in casing of minisplit evaporator unit where space permits.

Fin/Blade Spacing .000

Fin Degree 0

Screw Holes 0

Pump Air Handler Ceiling, Ducted, Floor, Wall Mounted

BTU Capacity Under 2.5 ton, 2.5 ton to 4.5 ton, Over 4.5 ton

Pump Location Remote
