Robertshaw Air Pressure Sensing Switch Series 2374-510 – One-stop shop for professional tools and equipment.

Description

Product Description

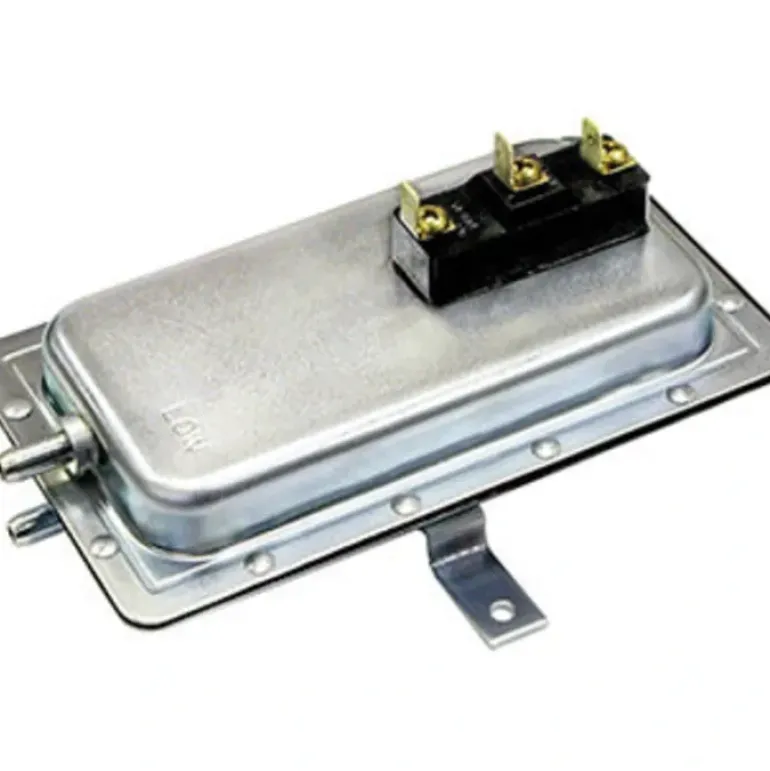

Robertshaw – 2374-510 The Robertshaw 2374-510 Air Pressure Sensing Switch has a glass-filled polycarbonate housing containing a sensing diaphragm and an integral snap-acting switch with three male 90° quick-connect terminals. The switch can sense positive, negative or differential air pressure. The field adjustable set point range of this switch is 0.10‚¬ WC to 10.0‚¬ WC. Using the switch accessories contained in this kit, the switch can be applied to a wide variety of residential and light commercial HVAC applications.

2374-510 Kit Contents

• Air pressure sensing switch
• Calibration springs (5 options)
• Orifice flows (4 options)
• Mounting brackets (2 options)
• Calibration tool (hex wrench)

Additional Information

Additional Information

Series ApplicationUniversal Air Pressure Sensing Switch

Electrical RatingSPDT, SPST Electrical Load: 1/10 Hp @ 120 to 277V AC; 28VA Pilot Duty @ 24V AC; 125VA Pilot Duty @ 120V AC. SPST Electrical Load: 5 Amps Resistive @ 24, 120, 277V AC

Temperature Range-40°F to 190°F (-40°C to 88°C)

Electrical ConnectionsSilver Contacts

Set Point Range0.10″ to 10.0″ W.C.
