Description

Product Description

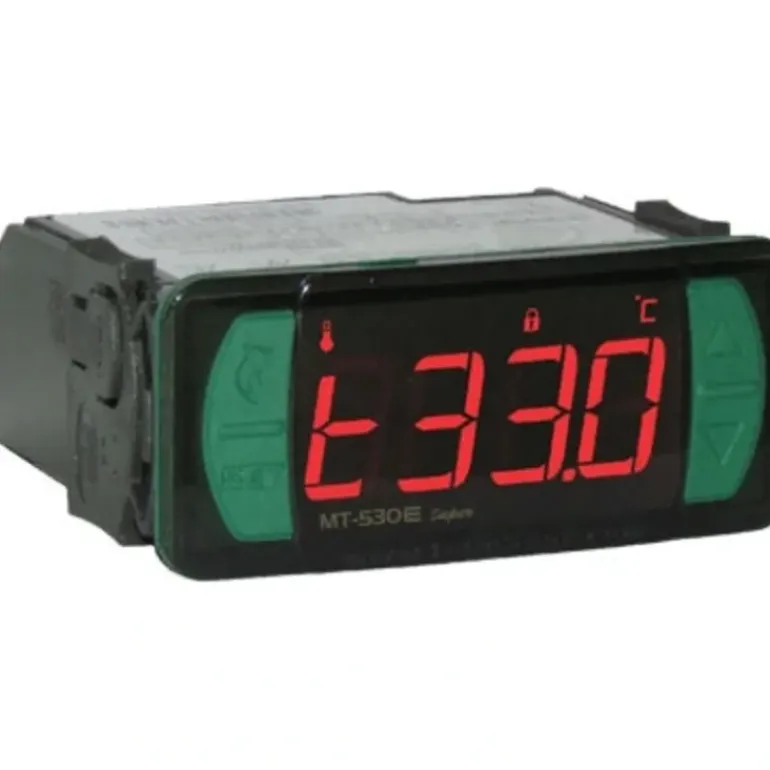

Robertshaw – MT-530E-SUPER The MT-530E-SUPER is a temperature controller with outputs for temperature control, humidity control, and auxiliary purposes, which may operate as a second stage for temperature control, humidity control, alarm, or cyclic timer. Used for low and medium relative humidity applications (10% to 85% with no condensation) and features an internal audible alarm (buzzer). Its temperature and humidity sensors are combined in a single bulb, saving space and wiring. Also includes an intelligent locking system to prevent unauthorized people from changing control parameters.

Additional Information

Application‚¬ Data centers ‚¬ Wine cellars ‚¬ Grain driers ‚¬ Green houses ‚¬ General ambient air conditioning

DimensionsWxHxD – 76 x 34 x 77 mm

Power Supply‚¬ MT-530E Super: 115 or 230 Vac ±10% (50/60 Hz) ‚¬ MT-530EL Super: 12 or 24 Vac/dc +10%

Control Temperature‚¬ -10 to 70.0°C ± 1.5°C (with resolution of 0.1°C) ‚¬ 14 to 158°F ± 3°F (with resolution of 1°F)

Operating Temperature0 to 50°C / 32 to 122°F

Operation Humidity10 to 85% RH (without condensation)

Control Humidity10 to 85% RH ± 5% RH (with resolution of 0.1%RH)

Load Current‚¬ Therm: 16(8)A/250 VAC 1HP ‚¬ Humid: 5(3)A/250 VAC 1/8 HP ‚¬ Aux: 5(3)A/250 VAC 1/8 HP
