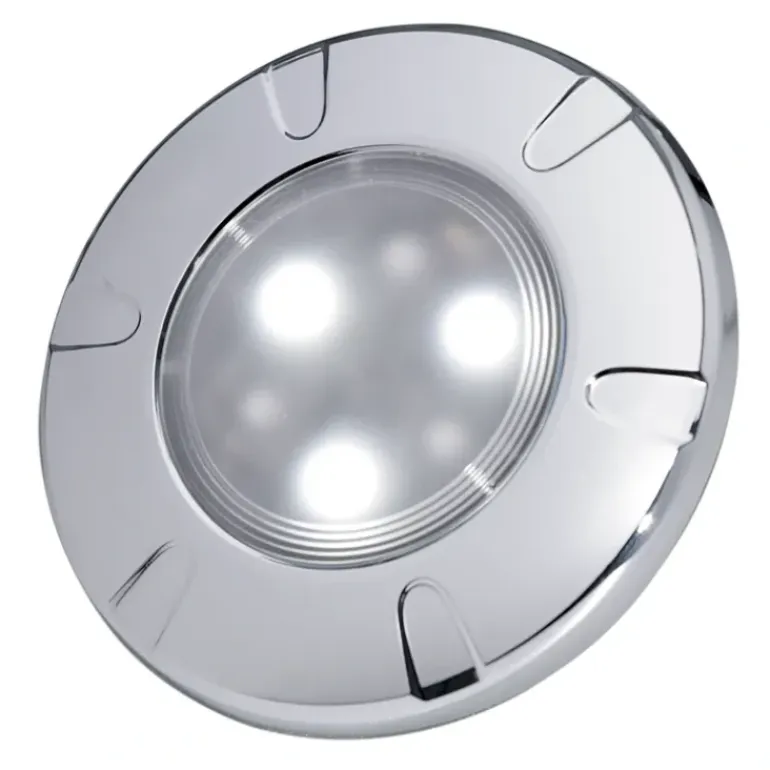

Soundoff Signal EBSDL0002-E Observe+ Dome Light – 3& Round, Dual Color – Blue/White – One-stop shop for professional tools and equipment.

Description

Product Description

Soundoff Signal – EBSDL0002-E

Features

• High performing, standard sized interior compartment light
• Offers a low amp draw, superior efficiency and hours of long-lasting reliability
• Low profile, surface mount design allows for multiple mounting options and easy installation
• Dual color with individual control
• Soft on/off
• Low power dim mode for nighttime

Additional Information

Input Voltage Range 10-32 Vdc

IP RatingIPx8

Standby Current0.125mA

CertificationsECE R10, CISPR25 Class 3

Max Current0.45A @ 12 Vdc; 0.23A @ 24 Vdc

Optic TypeFlood pattern

Max Power5.4 watts

Operating Temperature -40°C to +65°C

LED Color Options White, white/red, white/blue

Electrical ProtectionReverse polarity, transient protection

Mount TypesSurface mount with adhesive and screw options, Flush mount grommet option sold separately

LED Color Options CountSingle color – 6 LEDs, dual color – 3 white + 3 colored LEDs

Raw Lumens (Single)White – 390 lm

Raw Lumens (Dual)White – 350 lm, blue – 100 lm

Dimensions3.2″ diameter x 0.4″ depth (82mm diameter x 10mm depth)

Wire Length8″ (200 mm)

Raw Lumens (Dual)White – 350 lm, red – 110 lm

MaterialPolycarbonate lens, aluminum heatsink, ABS plastic bezel
