UEI Test 521KIT Gas Furnace Install Kit Includes – One-stop shop for professional tools and equipment.

Description

Product Description

UEI Test Instruments – 521KIT This Kit provides the recommended test instruments required by Gas Furnace start up manuals for proper installation and maintenance. Most equipment warranties require initial install readings to be documented upon installation.

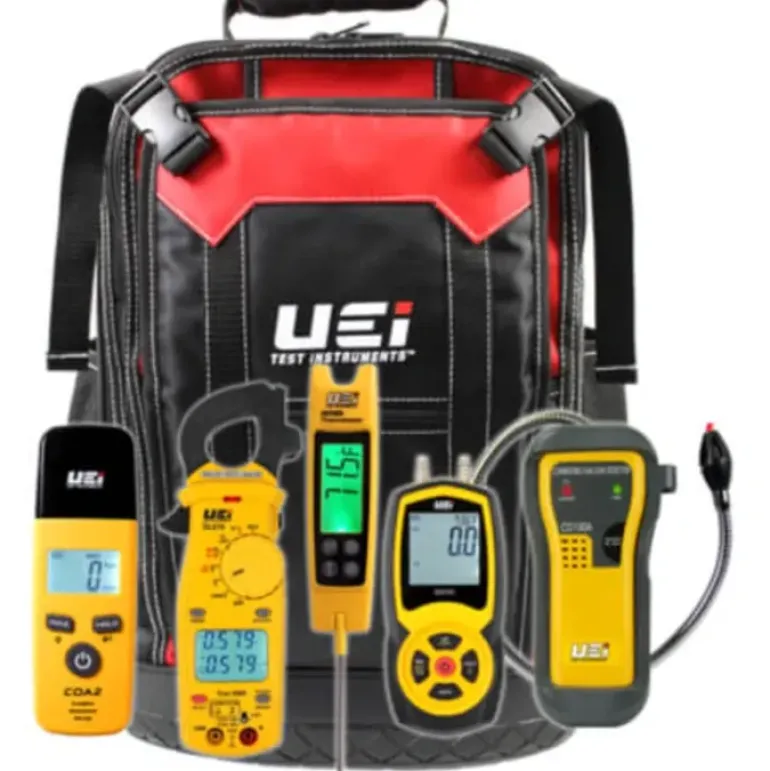

521KIT is packed in this UEi Tool Backpack, which is built rugged with a waterproof base and features two compartments with inner pockets and an included D-clip.

Includes

• Meter: DL579
• Manometer: EM720SPKIT
• Leak Detector: CD100A
• CO Detector: COA2
• Thermometer: PDT655

Features

• Manufacturer requirements to maintain warranty
• Safe Carbon Monoxide levels
• CFM via external static pressure test
• Gas flow pressure
• System is safe from gas leaks
• Proper high voltage to power supply and ground
• Low voltage meets wiring diagram requirements
• Hold: Yes
• Min/Max: Yes
• Auto power off: Yes
• Display count: 6000
• Backlight: Yes
• Dual display: Yes
• Temperature inputs: K-Type
• Temperature differential: Yes
• Free App available : Yes (Android™ and iOS® compatible)
• Protective boot or overmolding : Yes
• Dual pressure input : Yes
• Differential pressure : Yes
• Zero : Yes
• Selectable units : Yes
• Magnetic mount : Yes
• Warranty : Various
• Digital numeric leak indicator : Yes
• Recording/Data logging: In App
• Hi-Resolution accuracy: Yes
• Average: In App
• K-type input: Yes
• Folding temp probe: Yes
• Digital: Yes

Specifications

• TRMS : Yes
• AC volts: 750VAC
• DC volts: 1000V DC
• AC current (amps): 600A AC
• AC micro current (amps): 2000
• DC micro current (amps): 2000
• DC micro volts: 600mV
• AC micro volts: 600mV
• Resistance (Ohms): 60
• Capacitance (Farads): 6000
• Frequency (Hertz): 99.99kHz
• Duty cycle (%): Yes
• Temperature: -328 to 2462 degrees F
• Continuity: Yes
• Diode: Yes
• NCV detection: Yes
• CO: 0-999ppm
• Pressure: 60 InH2O
• Detects: Combustible Gas
• Detection sensitivity: 50ppm methane
• LRA Inrush: Yes
• Low Z: Yes
