Description

Product Description

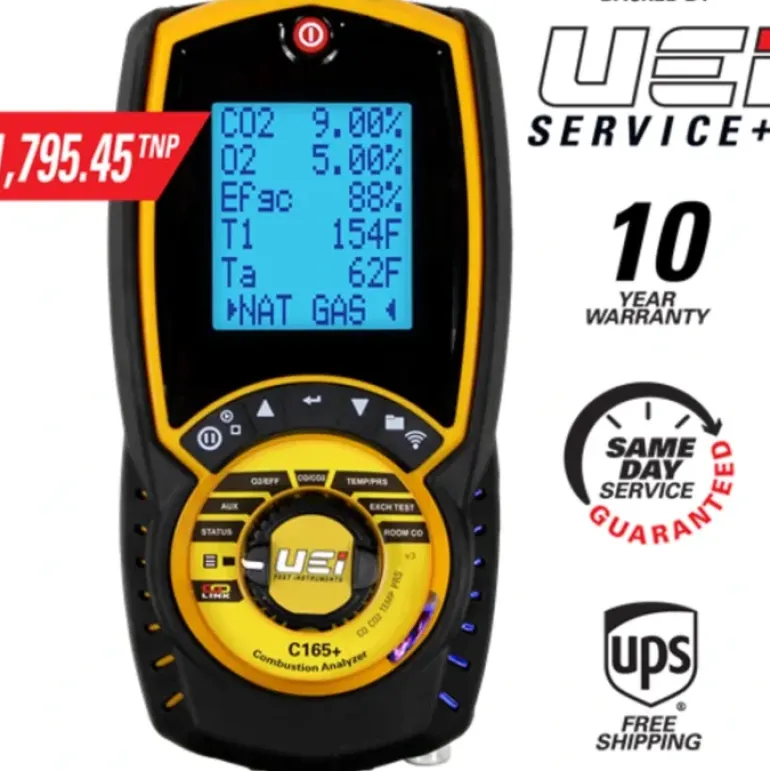

UEI Test Instruments – C165+KIT The C165+ Residential/Commercial Combustion Analyzer is easy to use and provides essential information for installing and maintaining gas appliances. It features an H2 compensated 10,000 ppm CO sensor with purge pump protection, and LINK wireless probe connection for use with included wireless pipe clamp probes. The C165+ allows techs to print to an included printer through the IR port for hard copies or wireless to a compatible device using with the Kane Wireless Printer App to record and email results.

Includes: Analyzer, Printer, 2 Thermocouples, 2 WPC2 Wireless Pipe Clamp Probes, and Carrying Case

The WPC2 is a wireless pipe clamp probe designed for pipes with a diameter between 3/16 in. and 1 7/16 in.

Features

• Up to 10-Year Warranty with Annual Recertification Yes
• Eligible for UEi Service+ Yes
• Temperature Differential Yes
• Differential Pressure Yes
• 3 Types of Sensor Protection Yes
• NOx Filtered CO Sensor Yes
• Low Flow Detection Yes
• Over Range Protection Pump Yes
• Link to Wireless Probes Yes
• Backlight Yes
• Temperature Inputs K-Type
• Wireless Output Yes
• Protective Boot/Overmolding Yes
• Dual Pressure Input Yes
• Preprogrammed Fuels 8
• Start Time 30 second
• High Altitude Compensation Yes
• Memory positions 45
• Magnetic Mount Yes
• Warranty 10-Year limited
• K-Type Input Yes
• Digital Yes
• Automatic Fresh Air Purge Yes
• Number of Display Parameters 6 line
• IR Printer Link Yes
• Protective Water Trap Yes

Function

• CO 10,000ppm (H2 Compensated)
• CO2 0.2
• O2 0.21
• Flue Temperature 32˚ to 1112˚F
• Inlet Temperature 32˚ to 1112˚F
• Heat Exchanger Test (HET) Yes
• Differential Temperature Yes
• K-Type Temperature Range -40˚ to 950˚F (-40˚ to 510˚C)
• Pressure Yes
