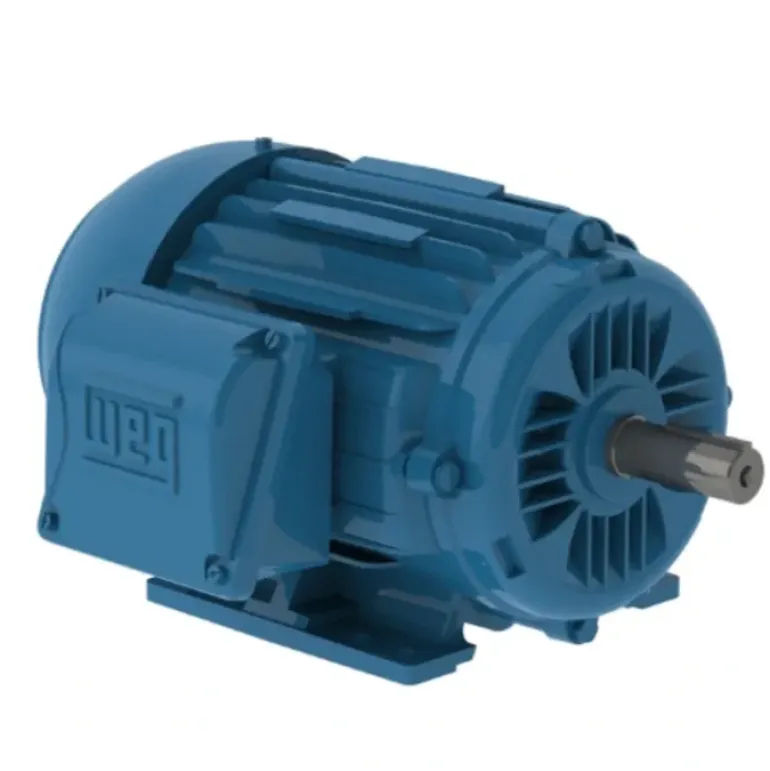

Weg Motors 11437927 W22 NEMA Premium Efficiency 3 HP 2P 182T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted-00336ET3E182T-W22S – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00336ET3E182T-W22S With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0336ET3E182T-W22S

StandardNEMA MG-1

Frequency60 Hz

Voltage230/460//380 V

Number of poles2

Degree of ProtectionIP55

Synchronous speed3600 RPM

Output rating3 HP

MountingF-1

FlangeWithout

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame182T

Output3 HP (2.2 kW)

Rated speed3510 RPM

Slip0.025

Rated voltage230/460 V

Rated current7.26/3.63 A

L. R. Amperes62.4/31.2 A

LRC8.6x(Code K)

No load current2.60/1.30 A

Rated torque4.49 ft.lb

Locked rotor torque2.5

Breakdown torque3.8

Locked rotor time73s (cold) 41s (hot)

Moment of inertia (J)0.1889 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²66.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capNo-Without Bearing Cap

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity9

Shaft Locking DeviceWithout
