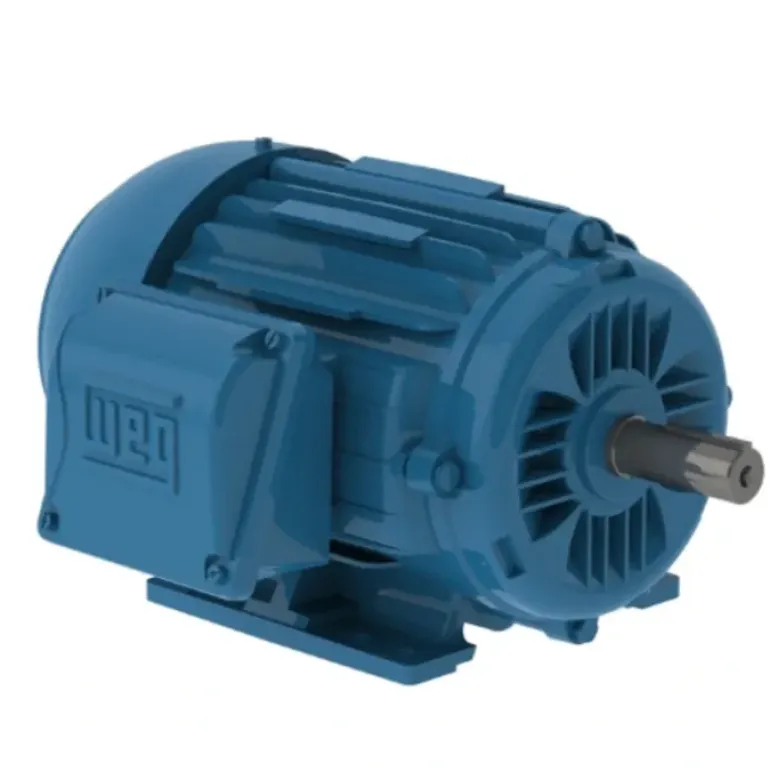

Weg Motors 11441932 W22 NEMA Premium Efficiency 1.5 HP 2P 143T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted-00156ET3E143T-W22S – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00156ET3E143T-W22S With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0156ET3E143T-W22S

StandardNEMA MG-1

Frequency60 Hz

Voltage230/460//380 V

Number of poles2

Degree of ProtectionIP55

Synchronous speed3600 RPM

Output rating1.5 HP

MountingF-1

FlangeWithout

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame143T

Output1.5 HP (1.1 kW)

Rated speed3480 RPM

Slip0.0333

Rated voltage230/460 V

Rated current3.92/1.96 A

L. R. Amperes34.9/17.4 A

LRC8.9x(Code L)

No load current1.66/0.830 A

Rated torque2.26 ft.lb

Locked rotor torque3.1

Breakdown torque3.7

Locked rotor time37s (cold) 21s (hot)

Moment of inertia (J)0.0470 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²68.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 3/4″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capNo-Without Bearing Cap

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity9

Shaft Locking DeviceWithout
