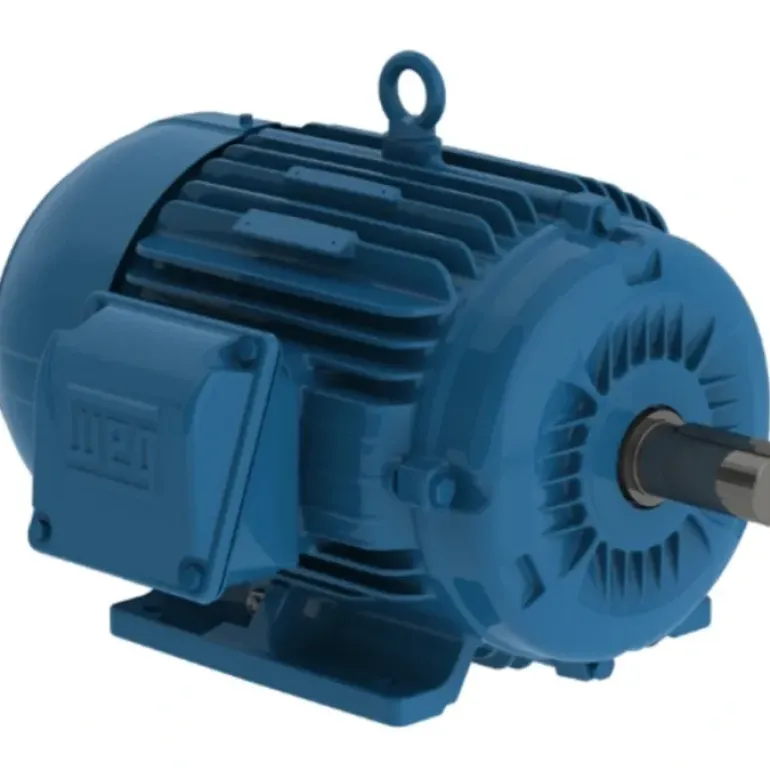

Weg Motors 11572207 W22 NEMA Premium Efficiency 10 HP 4P 215T 3Ph 230/460//380 V 60//50 Hz IC411 – TEFC – Foot-mounted-01018ET3E215TF3-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 01018ET3E215TF3-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number1018ET3E215TF3-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage230/460//380 V

Number of poles4

Degree of ProtectionIP55

Synchronous speed1800 RPM

Output rating10 HP

MountingF-3

FlangeWithout

Terminal box¹Top

EnclosureIC411 – TEFC

Frame215T

Output10 HP (7.5 kW)

Rated speed1765 RPM

Slip0.0194

Rated voltage230/460 V

Rated current24.8/12.4 A

L. R. Amperes159/79.4 A

LRC6.4x(Code H)

No load current11.3/5.65 A

Rated torque29.8 ft.lb

Locked rotor torque2

Breakdown torque2.95

Locked rotor time30s (cold) 17s (hot)

Moment of inertia (J)1.51 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²58.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capNo-Without Bearing Cap

Balancing Method1/2 Key

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity9

Shaft Locking DeviceWithout
