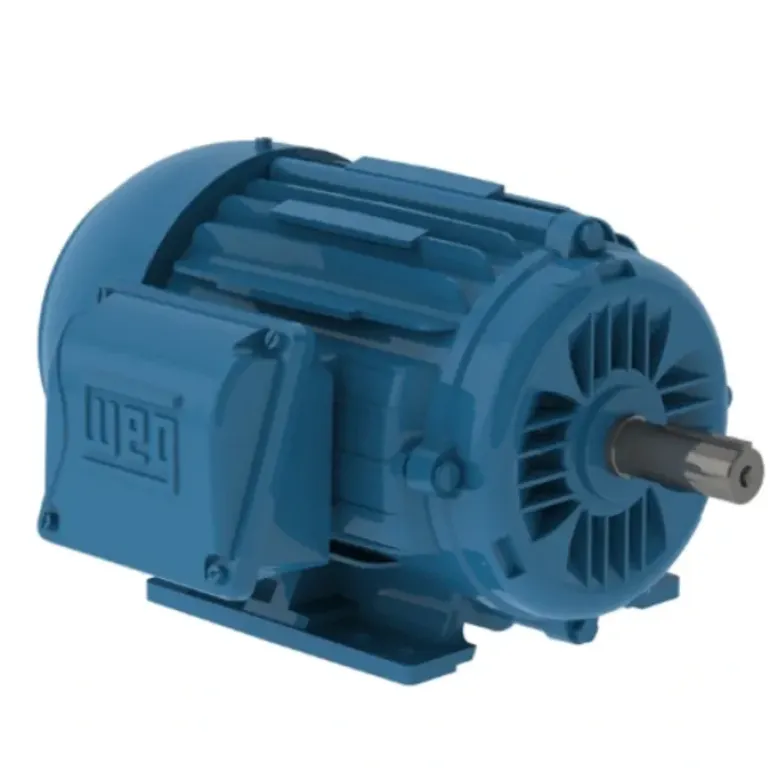

Weg Motors 11958351 W22 NEMA Premium Efficiency 1 HP 6P 143/5T 3Ph 200 V 60 Hz IC411 – TEFC – Foot-mounted-00112ET3P145T-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00112ET3P145T-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0112ET3P145T-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage200 V

Number of poles6

Degree of ProtectionIP55

Synchronous speed1200 RPM

Output rating1 HP

MountingF-1

FlangeWithout

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame143/5T

Output1 HP (0.75 kW)

Rated speed1160 RPM

Slip0.0333

Rated voltage200 V

Rated current3.98 A

L. R. Amperes24.7 A

LRC6.2x(Code K)

No load current2.53 A

Rated torque4.53 ft.lb

Locked rotor torque2.6

Breakdown torque3

Locked rotor time50s (cold) 28s (hot)

Moment of inertia (J)0.1595 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²50.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 3/4″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capNo-Without Bearing Cap

Balancing Method1/2 Key

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity3

Shaft Locking DeviceWithout
