Weg Motors 12596017 W22 NEMA Premium Efficiency 7.5 HP 4P 213/5TC 3Ph 200/400 V 60 Hz IC411 – TEFC – Foot-mounted-00718ET3V213TC-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

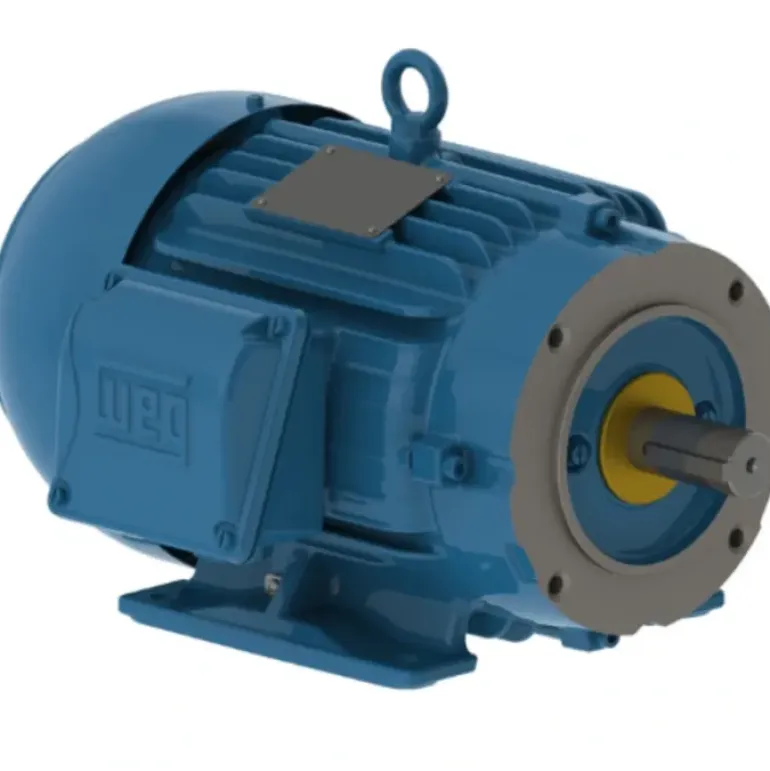

Weg – 00718ET3V213TC-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0718ET3V213TC-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage200/400 V

Number of poles4

Degree of ProtectionIP55

Synchronous speed1800 RPM

Output rating7.5 HP

MountingF-1

FlangeC

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame213/5TC

Output7.5 HP (5.5 kW)

Rated speed1765 RPM

Slip0.0194

Rated voltage200/400 V

Rated current21.1/10.6 A

L. R. Amperes150/75.0 A

LRC7.1x(Code H)

No load current10.1/5.06 A

Rated torque22.3 ft.lb

Locked rotor torque2.2

Breakdown torque3.1

Locked rotor time36s (cold) 20s (hot)

Moment of inertia (J)1.34 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²58.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capYes- Bearing Cap

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity12

Shaft Locking DeviceWithout
