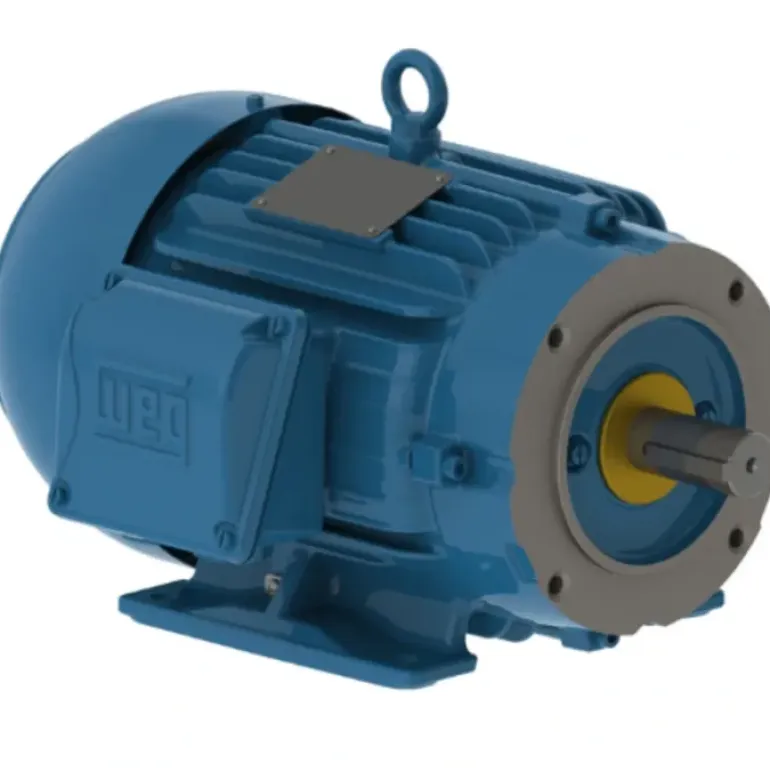

Weg Motors 12606407 W22 NEMA Premium Efficiency 3 HP 4P 182/4TC 3Ph 200/400 V 60 Hz IC411 – TEFC – Foot-mounted-00318ET3V182TC-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00318ET3V182TC-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0318ET3V182TC-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage200/400 V

Number of poles4

Degree of ProtectionIP55

Synchronous speed1800 RPM

Output rating3 HP

MountingF-1

FlangeC

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame182/4TC

Output3 HP (2.2 kW)

Rated speed1760 RPM

Slip0.0222

Rated voltage200/400 V

Rated current8.99/4.50 A

L. R. Amperes72.8/36.4 A

LRC8.1x(Code K)

No load current4.60/2.30 A

Rated torque8.95 ft.lb

Locked rotor torque2.29

Breakdown torque3.4

Locked rotor time41s (cold) 23s (hot)

Moment of inertia (J)0.3401 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²56.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capYes- Bearing Cap

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity12

Shaft Locking DeviceWithout
