Weg Motors 12606444 W22 NEMA Premium Efficiency 15 HP 4P 254/6TC 3Ph 200/400 V 60 Hz IC411 – TEFC – Foot-mounted-01518ET3V254TC-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

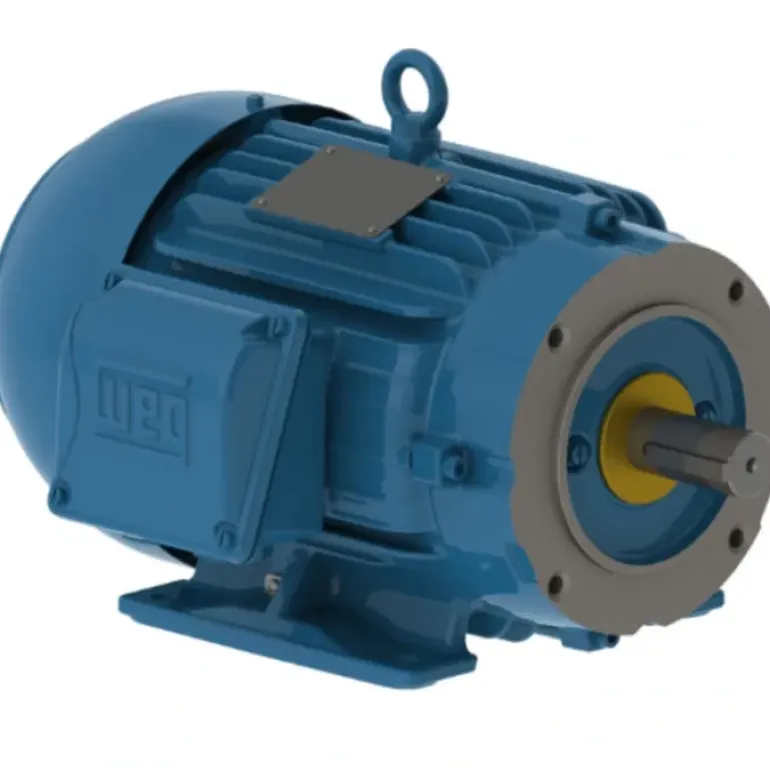

Weg – 01518ET3V254TC-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number1518ET3V254TC-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage200/400 V

Number of poles4

Degree of ProtectionIP55

Synchronous speed1800 RPM

Output rating15 HP

MountingF-1

FlangeC

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame254/6TC

Output15 HP (11 kW)

Rated speed1768 RPM

Slip0.0178

Rated voltage200/400 V

Rated current41.4/20.7 A

L. R. Amperes265/132 A

LRC6.4x(Code G)

No load current16.1/8.05 A

Rated torque44.6 ft.lb

Locked rotor torque2.4

Breakdown torque2.6

Locked rotor time55s (cold) 31s (hot)

Moment of inertia (J)2.62 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²64.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1 1/2″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 203A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialCast Iron

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capYes- Bearing Cap

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity12

Shaft Locking DeviceWithout

Regreasing SystemAt Drive end and Non-drive end
