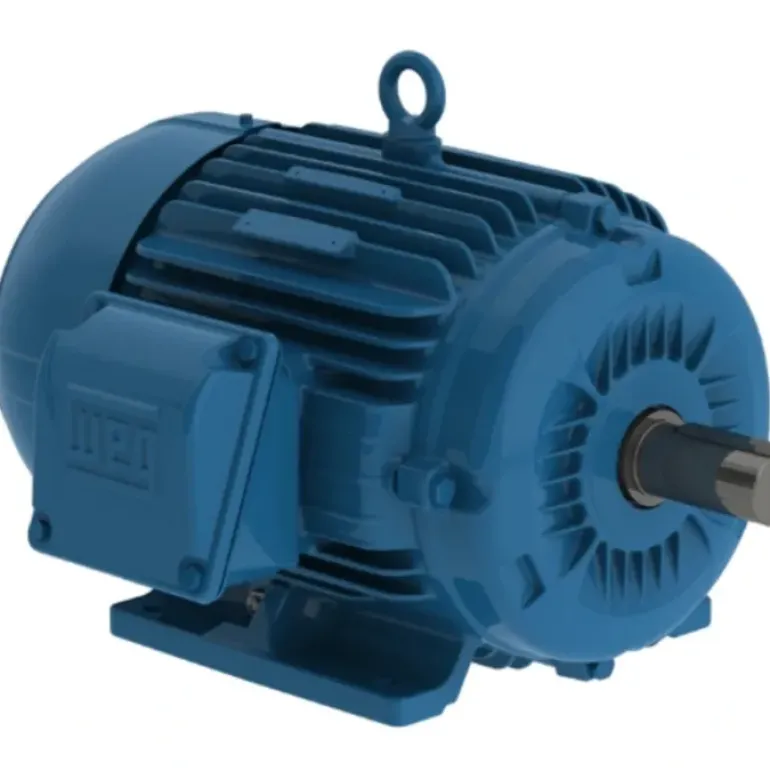

Weg Motors 13472232 W22 NEMA Premium Efficiency 2 HP 8P 213/5T 3Ph 575 V 60 Hz IC411 – TEFC – Foot-mounted-00209ET3H213T-W22 – One-stop shop for professional tools and equipment.

Description

Product Description

Weg – 00209ET3H213T-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Additional Information

Catalog Number0209ET3H213T-W22

StandardNEMA MG-1

Frequency60 Hz

Voltage575 V

Number of poles8

Degree of ProtectionIP55

Synchronous speed900 RPM

Output rating2 HP

MountingF-1

FlangeWithout

Terminal box¹Left position

EnclosureIC411 – TEFC

Frame213/5T

Output2 HP (1.5 kW)

Rated speed875 RPM

Slip0.0278

Rated voltage575 V

Rated current2.71 A

L. R. Amperes18.7 A

LRC6.9x(Code L)

No load current1.84 A

Rated torque12.0 ft.lb

Locked rotor torque2.2

Breakdown torque2.9

Locked rotor time70s (cold) 39s (hot)

Moment of inertia (J)1.79 sq.ft.lb

DesignB

Insulation ClassF

Service factor1.25

Temperature rise80 K

Duty CycleCont.(S1)

Starting MethodDirect On Line

Ambient temperature-20°C to +40°C

Altitude1000 m.a.s.l.

Rotation¹Both (CW and CCW)

Noise level²52.0 dB(A)

Frame MaterialCast Iron

Impregnation MethodDip and Bake Polyester

Main terminal box holeNPT 1″

Terminal BlockWithout

DrainRubber, automatic

Shaft MaterialSAE 1040/45 Carbon Steel

PaintingRAL 5009 207A (ISO 12944 – C2)

Grounding LugsSingle

Fan Cover materialSteel

Tropicalized PaintingWithout

Fan materialPlastic

Bearing capNo-Without Bearing Cap

Balancing Method1/2 Key

Drip CoverWithout

Overload protector (phenolic)Without overload protector

Connection Cables Quantity6

Shaft Locking DeviceWithout
